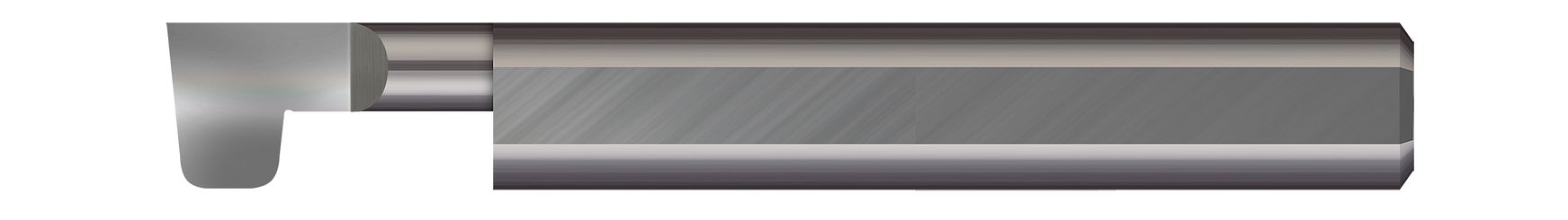

• OR-208-13X.jpg
1 1

Micro 100

Micro 100 OR-208-13X | 0.3970" Minimum Bore Diameter x 13/16" Maximum Bore Depth x 0.2080" Width x 0.1150" Projection x 3/8" Shank x 2-1/2" OAL AlTiN Coated Carbide Grooving Tool

Micro 100 OR-208-13X | 0.3970" Minimum Bore Diameter x 13/16" Maximum Bore Depth x 0.2080" Width x 0.1150" Projection x 3/8" Shank x 2-1/2" OAL AlTiN Coated Carbide Grooving Tool

SKU: 25129119

$75.05 USD
$75.05 USD $75.05 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

This Micro 100 OR product line of solid carbide O-Ring grooving tools CNC ground in the USA features a polished split face for improved edge retention and chip evacuation while reducing galling.

  • Designed for creating O-ring grooves
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Lockdown flat automatically locates tool on center
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.3970"
Hand Direction Right Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 0.812" (13/16)
Projection (Inch) 0.1150"
Shank Diameter (Inch) 0.3750" (3/8)
Centerline Offset (Inch) 0.1875" (3/16)
Radius (Inch) 0.0350"
Face Dimension 0.188" (3/16)
Neck Diameter (Inch) 0.2550"
Overall Length (Inch) 2.50" (2-1/2)
Split Length (Inch) 0.360"
Tooth Width (Inch) 0.2080"
