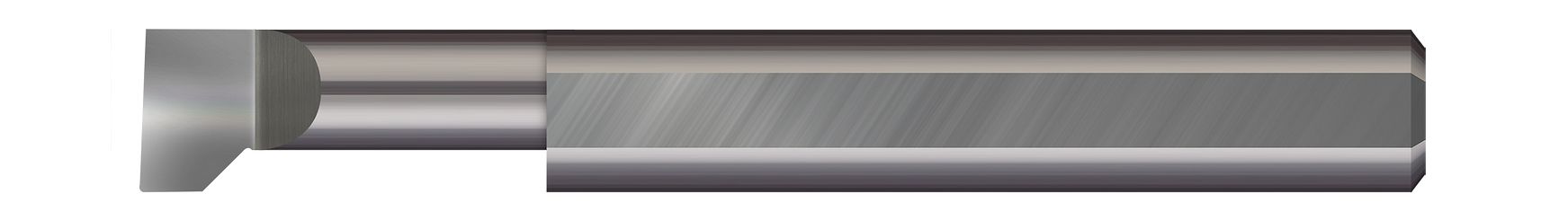

Micro 100's LTR product line, its solid carbide thread relief tool, is designed for plunging thread relief at the bottom of a thread and features a lockdown flat that automatically locates tool on center.
- Designed for plunging thread relief at the bottom of a thread
- Polished split face for improved edge retention and chip evacuation while reducing galling
- Split geometry makes the tool as rigid as possible
- Lockdown flat automatically locates tool on center
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (Inch) | 0.1040" |
| Hand Direction | Right Hand |
| Finish/Coating | Uncoated |
| Max Bore Depth (Inch) | 0.375" (3/8) |
| Projection (Inch) | 0.0400" |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Centerline Offset (Inch) | 0.0315" |
| Corner Radius (Inch) | 0.002" |
| Face Dimension | 0.063" (1/16) |
| Neck Diameter (Inch) | 0.0540" |
| Overall Length (Inch) | 1.50" (1-1/2) |
| Tooth Width (Inch) | 0.0490" |
