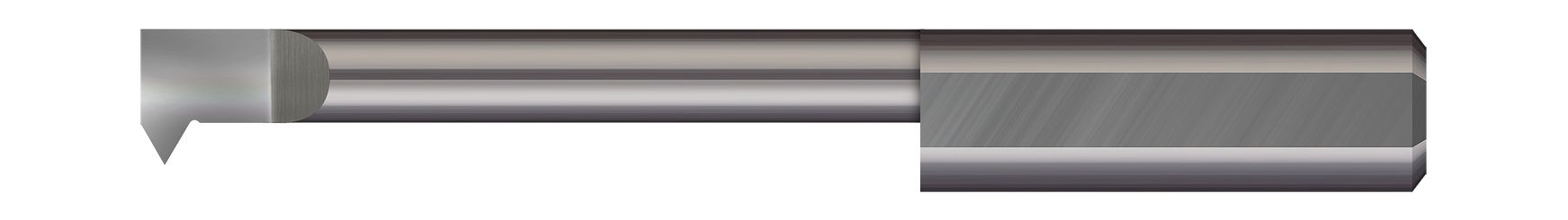

This metric line of single point, right hand threading tools is designed for threading multiple thread pitches (ANSI, UN, and Metric 60 Degree), and features a split geometry to make the tool as rigid as possible.
- Designed for threading mulitple thread pitches (ANSI, UN, & Metric 60 Degree)
- Polished split face for improved edge retention and chip evacuation while reducing galling
- Split geometry makes the tool as rigid as possible
- Corner radius profile
- Lockdown flat automatically locates tool on center
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (mm) | 10.150 mm |
| Hand Direction | Right Hand |
| Finish/Coating | Uncoated |
| Max Bore Depth (mm) | 20 mm |
| Projection (mm) | 2.410 mm |
| Shank Diameter (mm) | 10 mm |
| Centerline Offset (mm) | 4.600 mm |
| Offset (mm) | 1.40 mm |
| Radius (mm) | 0.050 mm |
| Angle per Side | 30 |
| Included Angle | 60 |
| Face Dimension | 0.20 mm |
| Metric (Yes/No) | Yes |
| Neck Diameter (mm) | 7.090 mm |
| Overall Length (mm) | 72.0 mm |
| Split Length (mm) | 5.80 mm |
| Thread Size | 2.0-4.0 |
| Tooth Width (mm) | 2.790 mm |
