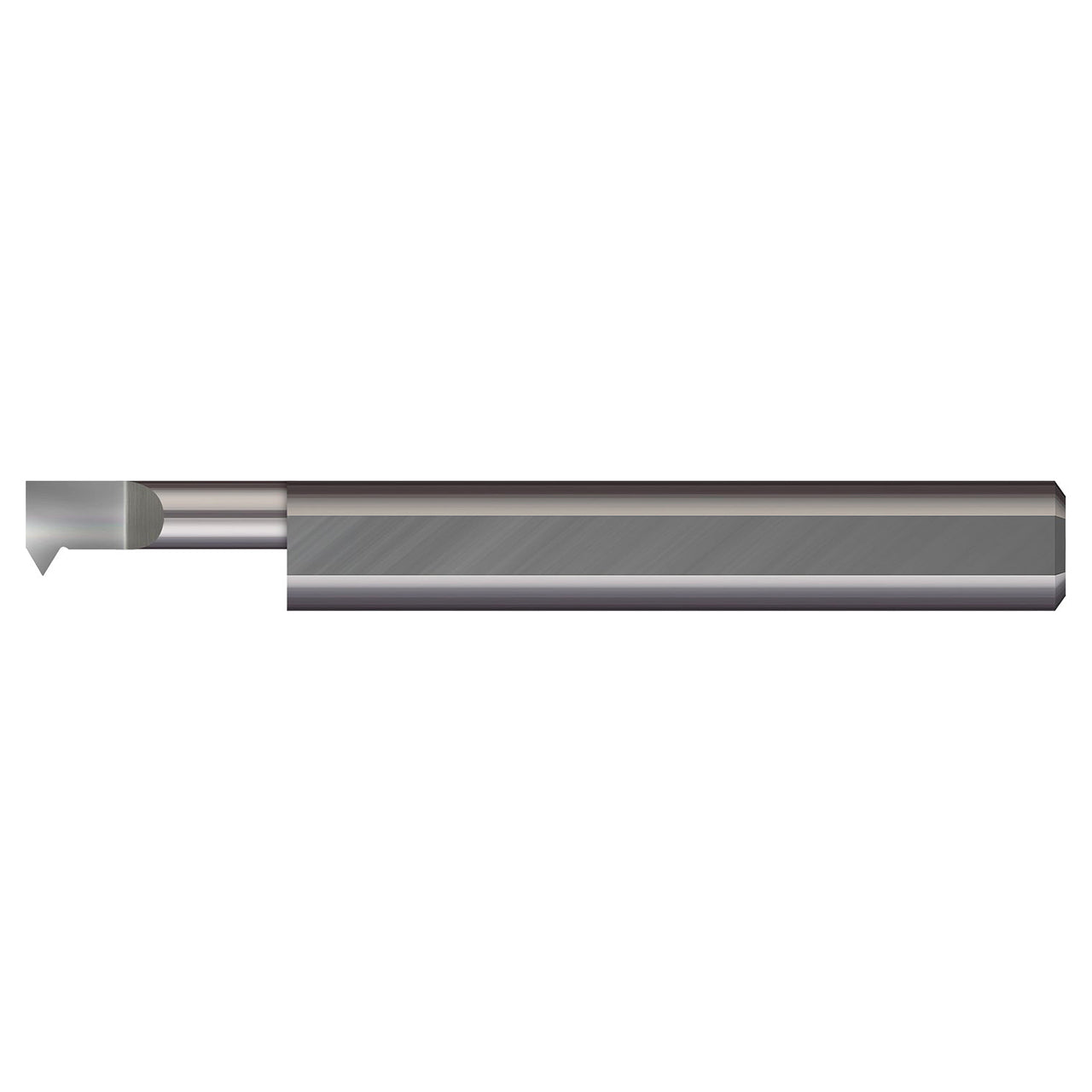

Designed for threading multiple thread pitches (ANSI, Un, and Metric 60 Degree) in right hand threading applications, this set of solid carbide threading tools feature a 0.002" tip radius and a lockdown flat.
Features:- Polished split face for improved edge retention and chip evacuation while reducing galling
- Lockdown flat automatically locates tool on center
- AlTiN coating option for added lubricity and increased wear resistance in difficult-to-machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | IT-3601500 |
| Minimum Bore Diameter (Inch) | 0.3820" |
| Maximum Bore Depth (Inch) | 1.500" (1-1/2) |
| Projection (Inch) | 0.0850" |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Centerline Offset (Inch) | 0.1725" |
| Offset (Inch) | 0.049" |
| Radius (Inch) | 0.0020" |
| Angle per Side (Degree) | 30 Degree |
| Included Angle (Degree) | 60 Degree |
| Overall Length (Inch) | 2.50" (2-1/2) |
| Neck Diameter (Inch) | 0.2700" |
| Thread Size | 7-32 |
| Hand Direction | Right Hand |
| Coating | Uncoated |
