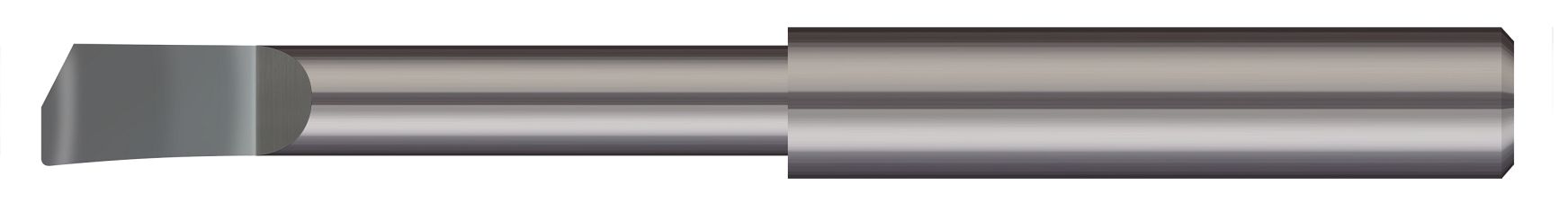

This fully stocked offering of Micro 100 Helical Back Rake Boring Tools features a corner radius profile for added strength and improved tool life. This unique tool is also available for use with Micro 100's Micro-Quik.
- Designed for boring applications in bores .030" and larger
- Polished face for improved edge retention and chip evacuation while reducing galling
- Helical grind provides ideal top rake for better chip control and freer cutting
- Well suited for machining plastics
- On center neck design allows for static and live/rotating applications
- Lockdown flat automatically locates tool on center
- Corner radius profile
- Solid carbide
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (Inch) | 0.2275" |
| Hand Direction | Right Hand |
| Finish/Coating | Uncoated |
| Max Bore Depth (Inch) | 1" (1) |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Centerline Offset (Inch) | 0.1200" |
| Radius (Inch) | 0.0040" |
| Face Dimension | 0.125" (1/8) |
| Neck Diameter (Inch) | 0.2150" |
| Overall Length (Inch) | 2.50" (2-1/2) |
| Rotational Min Bore Diameter (Inch) | 0.240" |
