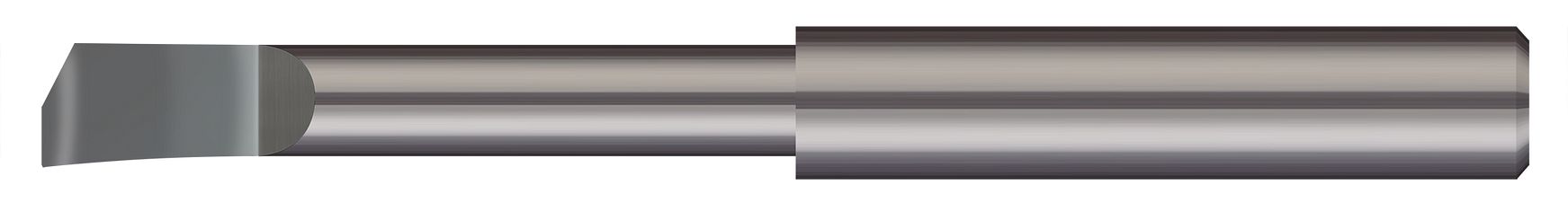

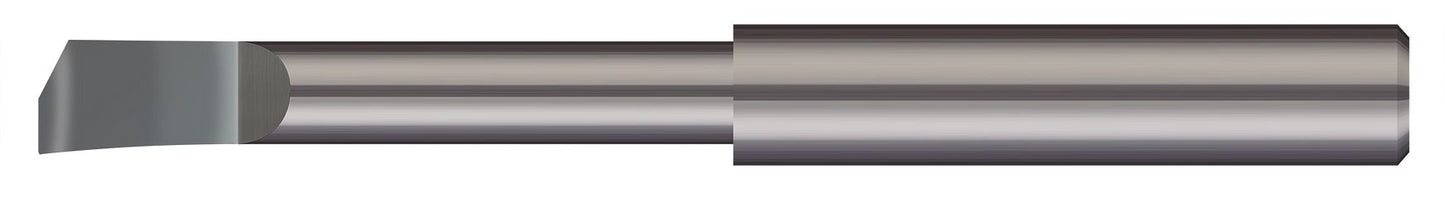

The helical grind on this helical back rake line of tooling provides ideal top rake for better chip control and freer cutting, and features a neck that's centered to shank for use in jig bore machines.
- Designed for boring applications in bores .020" and larger
- Polished face for improved edge retention and chip evacuation while reducing galling
- Helical grind provides ideal top rake for better chip control and freer cutting
- Uncoated variant ideal for plastics
- On center neck design allows for static and live/rotating applications
- Cylindrical shank (no set screw flat)
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (Inch) | 0.0325" |
| Hand Direction | Right Hand |
| Finish/Coating | AlTiN |
| Max Bore Depth (Inch) | 0.125" (1/8) |
| Projection (Inch) | 0.0025" |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Centerline Offset (Inch) | 0.0175" |
| Face Dimension | 0.063" (1/16) |
| Neck Diameter (Inch) | 0.0300" |
| Overall Length (Inch) | 1.50" (1-1/2) |
| Rotational Min Bore Diameter (Inch) | 0.035" (.9 mm) |
| Split Length (Inch) | 0.070" |
