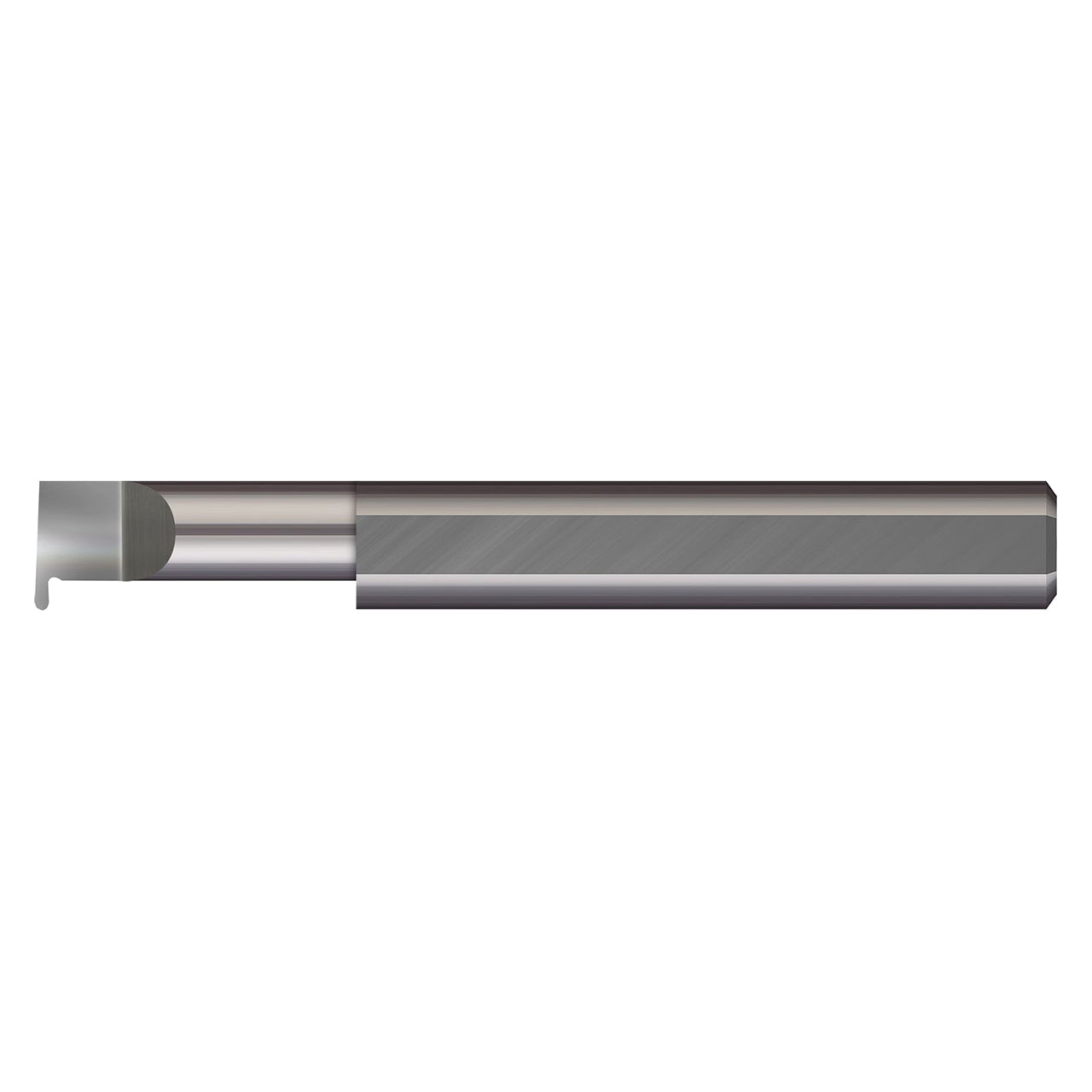

Product Specifications
| Manufacturer Part Number | FR-0271X |
| Minimum Bore Diameter (Decimal Inch) | 0.5220" |
| Maximum Bore Diameter (Decimal Inch) | 1.250" |
| Maximum Bore Diameter (Inch) | 1-1/4" |
| Head Width (Decimal Inch) | 0.500" |
| Head Width (Inch) | 1/2" |
| Projection (Decimal Inch) | 0.2000" |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1-2" |
| Shank Diameter(mm) | 0.2500" |
| Radius (Decimal Inch) | 0.0625" |
| Radius (Inch) | 1/16" |
| Hand Direction | Right Hand |
| Neck Diameter (Decimal Inch) | 0.3000" |
| Overall Length (Decimal Inch) | 3.00" |
| Overall Length (Inch) | 3" |
| Tooth Width (Decimal Inch) | 0.1250" |
| Tooth Width (Inch) | 0.1250" |
| Coating | AlTiN |
| Product Type | Grooving Tool |
