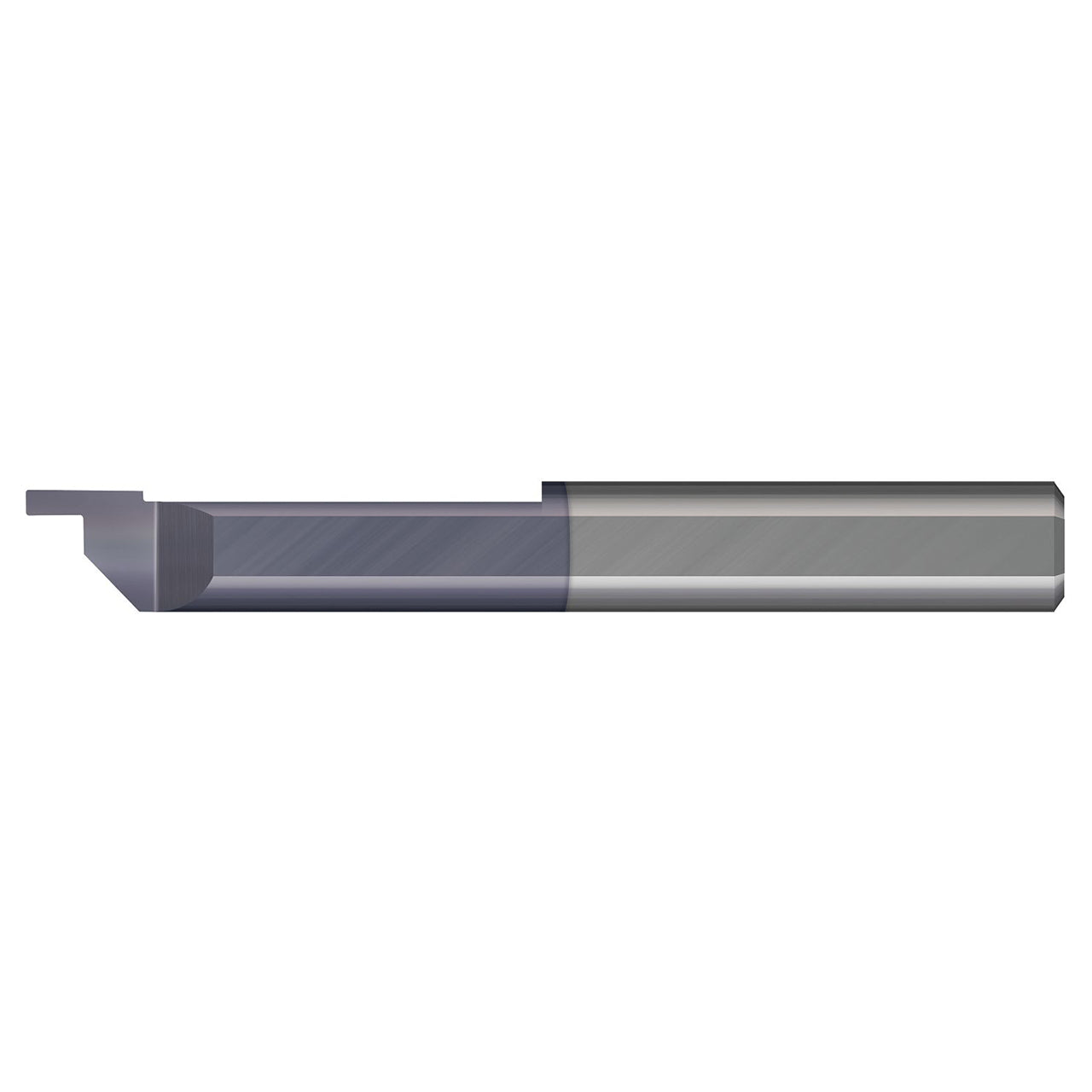

Micro 100's internal tooth corner radius face grooving tools are designed to generate corner radius grooves around a boss in the face of a part for right hand grooving applications.
Features:- Significantly reduces cycle times, as right hand design allows for multiple tools to be run simultaneously
- Relief ground along maximum turn depth (L2) to avoid interference during long turning applications
- Polished split face for improved edge retention and chip evacuation while reducing galling
- Split face geometry provides optimal edge strength
- Corner radius profile
- Lockdown flat automatically locates tool on center
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | FGIC3-7516X |
| Minimum Bore Diameter (Inch) | 0.2400" |
| Maximum Bore Depth (Inch) | 1.250" (1-1/4) |
| Projection (Inch) | 0.1000" |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Centerline Offset (Inch) | 0.1150" |
| Radius (Inch) | 0.0030" |
| Overall Length (Inch) | 2.50" (2-1/2) |
| Overall Reach (Inch) | 1.250" (1-1/4) |
| Neck Diameter (Inch) | 0.2150" |
| Tooth Width (Inch) | 0.0500" |
| Hand Direction | Right Hand |
| Coating | AlTiN |
