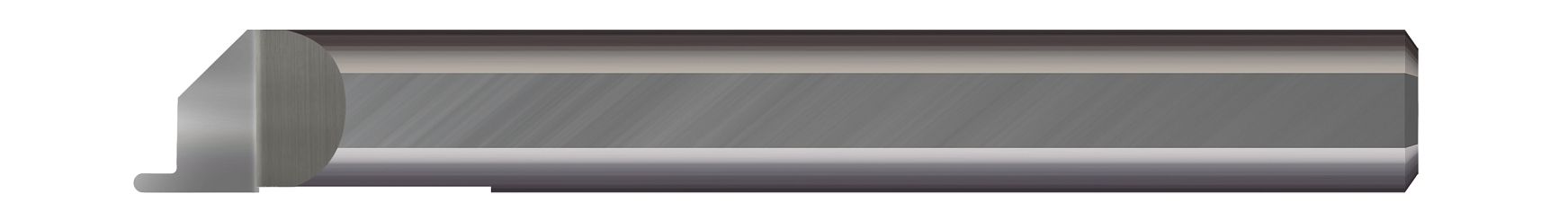

• FGF-312-062-100X.jpg
1 1

Micro 100

Micro 100 FGF-312-062-100X | 5/16" Minimum Bore Diameter x 1-1/8" Maximum Bore Depth x 1/16" Width x 0.1000" Projection x 5/16" Shank x 2-1/2" OAL AlTiN Coated Carbide Grooving Tool

Micro 100 FGF-312-062-100X | 5/16" Minimum Bore Diameter x 1-1/8" Maximum Bore Depth x 1/16" Width x 0.1000" Projection x 5/16" Shank x 2-1/2" OAL AlTiN Coated Carbide Grooving Tool

SKU: 25175540

$53.15 USD
$53.15 USD $53.15 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

Designed for generating full radius grooves in the face of a part, this solid carbide Micro 100 Grooving Tool features a polished split face for improved edge retention and chip evacuation while reducing galling.

  • Designed for generating full radius grooves in the face of the part
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Full radius profile
  • Lockdown flat automatically locates tool on center
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid Carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.3120" (5/16)
Hand Direction Right Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 1.125" (1-1/8)
Projection (Inch) 0.1000"
Shank Diameter (Inch) 0.3125" (5/16)
Centerline Offset (Inch) 0.1563" (5/32)
Radius (Inch) 0.0310" (1/32)
Overall Length (Inch) 2.50" (2-1/2)
Overall Reach (Inch) 1.125" (1-1/8)
Tooth Width (Inch) 0.0620" (1/16)
