Micro 100

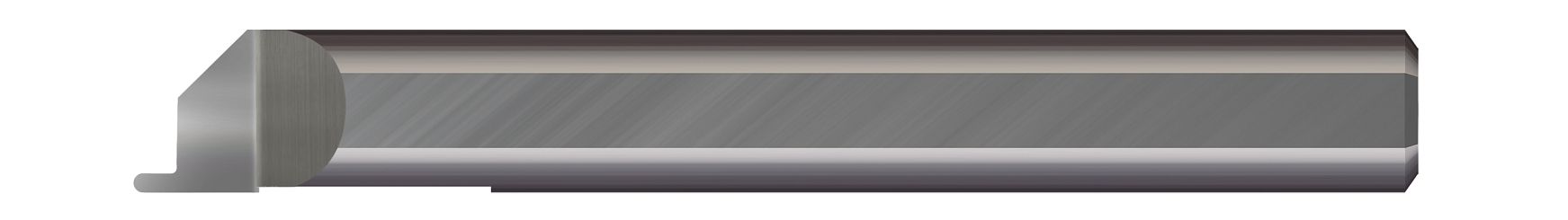

Micro 100 FGF-312-050-075X | 5/16" Minimum Bore Diameter x 1-1/8" Maximum Bore Depth x 0.0500" Width x 0.0750" Projection x 5/16" Shank x 2-1/2" OAL AlTiN Coated Carbide Grooving Tool

Micro 100 FGF-312-050-075X | 5/16" Minimum Bore Diameter x 1-1/8" Maximum Bore Depth x 0.0500" Width x 0.0750" Projection x 5/16" Shank x 2-1/2" OAL AlTiN Coated Carbide Grooving Tool

SKU: 25175538

$53.15 USD
$53.15 USD $53.15 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

Designed for generating full radius grooves in the face of a part, this solid carbide Micro 100 Grooving Tool features a polished split face for improved edge retention and chip evacuation while reducing galling.

  • Designed for generating full radius grooves in the face of the part
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Full radius profile
  • Lockdown flat automatically locates tool on center
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid Carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.3120" (5/16)
Hand Direction Right Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 1.125" (1-1/8)
Projection (Inch) 0.0750"
Shank Diameter (Inch) 0.3125" (5/16)
Centerline Offset (Inch) 0.1563" (5/32)
Radius (Inch) 0.0250"
Overall Length (Inch) 2.50" (2-1/2)
Overall Reach (Inch) 1.125" (1-1/8)
Tooth Width (Inch) 0.0500"
Warning:

This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
