Micro 100

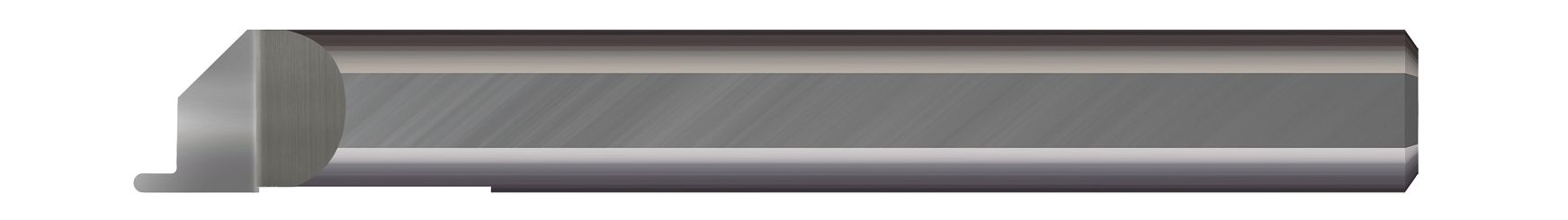

Micro 100 FGF-187-017-025 | 3/16" Minimum Bore Diameter x 3/4" Maximum Bore Depth x 0.0170" Width x 0.0250" Projection x 3/16" Shank x 2" OAL Uncoated Carbide Grooving Tool

Micro 100 FGF-187-017-025 | 3/16" Minimum Bore Diameter x 3/4" Maximum Bore Depth x 0.0170" Width x 0.0250" Projection x 3/16" Shank x 2" OAL Uncoated Carbide Grooving Tool

SKU: 25175507

$29.50 USD
$29.50 USD $29.50 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

Designed for generating full radius grooves in the face of a part, this solid carbide Micro 100 Grooving Tool features a polished split face for improved edge retention and chip evacuation while reducing galling.

  • Designed for generating full radius grooves in the face of the part
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Full radius profile
  • Lockdown flat automatically locates tool on center
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid Carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.1870" (3/16)
Hand Direction Right Hand
Finish/Coating Uncoated
Max Bore Depth (Inch) 0.750" (3/4)
Projection (Inch) 0.0250"
Shank Diameter (Inch) 0.1875" (3/16)
Centerline Offset (Inch) 0.0937" (3/32)
Radius (Inch) 0.0085"
Overall Length (Inch) 2" (2)
Overall Reach (Inch) 0.750" (3/4)
Tooth Width (Inch) 0.0170"
