Micro 100

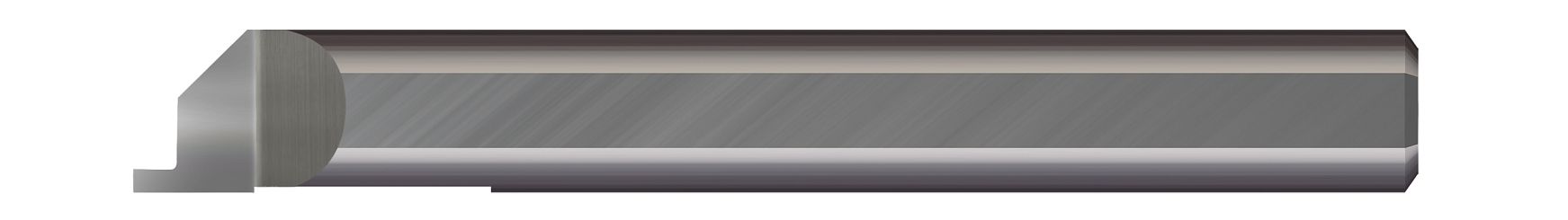

Micro 100 FG-625-062X | 5/8" Minimum Bore Diameter x 0.410" Maximum Bore Depth x 1/16" Width x 0.0750" Projection x 5/8" Shank x 3-1/2" OAL AlTiN Coated Carbide Grooving Tool

Micro 100 FG-625-062X | 5/8" Minimum Bore Diameter x 0.410" Maximum Bore Depth x 1/16" Width x 0.0750" Projection x 5/8" Shank x 3-1/2" OAL AlTiN Coated Carbide Grooving Tool

SKU: 25127012

$128.50 USD
$128.50 USD $128.50 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

Generate grooves in the face of a part with Micro 100's FG product line of face grooving tools, which feature a polished split face for improved edge retention and chip evacuation while reducing galling.

  • Designed for generating square grooves in the face of the part
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Relief ground along Maximum Bore Depth (L2) to avoid interference during deep hole applications
  • Sharp corner profile
  • Lockdown flat automatically locates tool on center
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.6250" (5/8)
Hand Direction Right Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 0.410"
Projection (Inch) 0.0750"
Shank Diameter (Inch) 0.6250" (5/8)
Centerline Offset (Inch) 0.3125" (5/16)
Face Dimension 0.313" (5/16)
Overall Length (Inch) 3.50" (3-1/2)
Overall Reach (Inch) 0.410"
Split Length (Inch) 0.410"
Tooth Width (Inch) 0.0620" (1/16)
