Micro 100

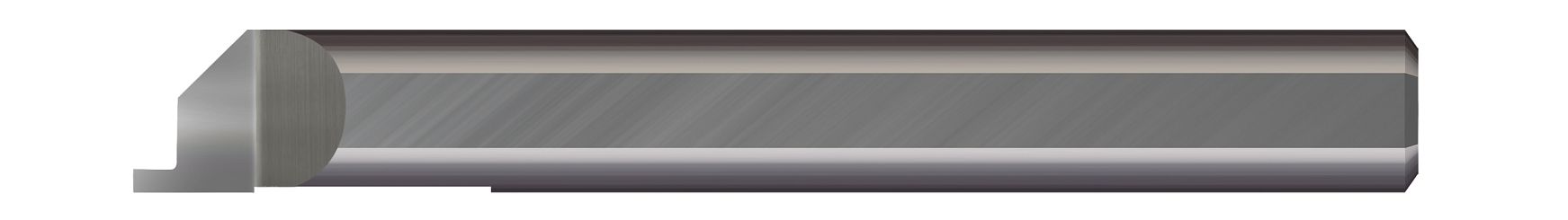

Micro 100 FG-187-025-025X | 3/16" Minimum Bore Diameter x 3/4" Maximum Bore Depth x 0.0250" Width x 0.0250" Projection x 3/16" Shank x 2" OAL AlTiN Coated Carbide Grooving Tool

Micro 100 FG-187-025-025X | 3/16" Minimum Bore Diameter x 3/4" Maximum Bore Depth x 0.0250" Width x 0.0250" Projection x 3/16" Shank x 2" OAL AlTiN Coated Carbide Grooving Tool

SKU: 25175330

$33.70 USD
$33.70 USD $33.70 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

Generate grooves in the face of a part with Micro 100's FG product line of face grooving tools, which feature a polished split face for improved edge retention and chip evacuation while reducing galling.

  • Designed for generating square grooves in the face of the part
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Relief ground along Maximum Bore Depth (L2) to avoid interference during deep hole applications
  • Sharp corner profile
  • Lockdown flat automatically locates tool on center
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.1870" (3/16)
Hand Direction Right Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 0.750" (3/4)
Projection (Inch) 0.0250"
Shank Diameter (Inch) 0.1875" (3/16)
Centerline Offset (Inch) 0.0937" (3/32)
Overall Length (Inch) 2" (2)
Overall Reach (Inch) 0.750" (3/4)
Tooth Width (Inch) 0.0250"
