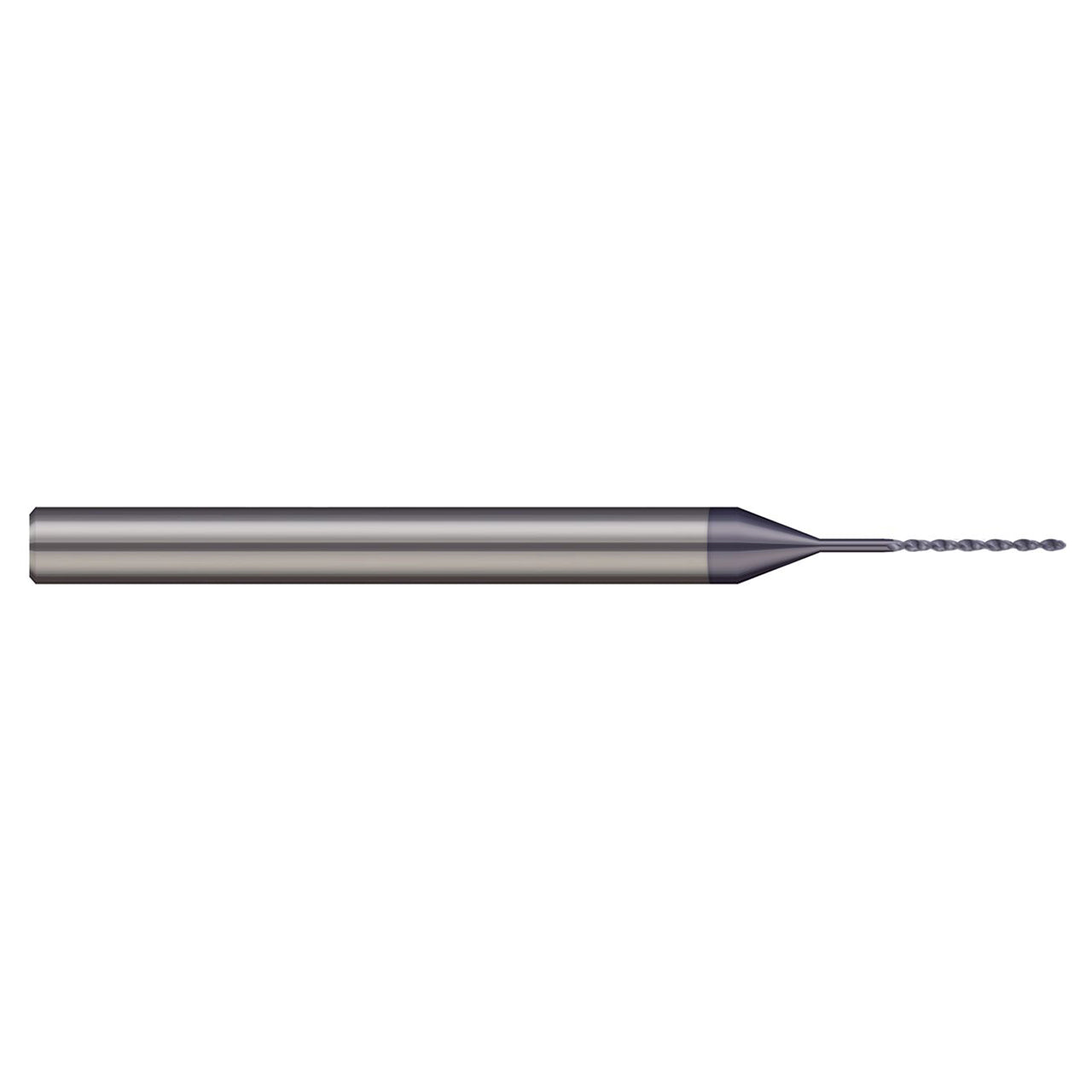

Micro 100 miniature drills are engineered with a 1/8" common shank for ease of use in taper integrated holders, are designed with a 130 Degree drill point, and feature AlTiN coating for improved lubricity and wear resistance.
Features:- For tools 0.020" and smaller, there is an intermediate neck diameter as pictured
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in germany
Product Specifications
| Manufacturer Part Number | DR02-0130 |
| Drill Diameter (Inch) | 0.0130" |
| Flute Length (Inch) | 0.230" |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Overall Length (Inch) | 1.50" (1-1/2) |
| Point Angle (Degree) | 130 Degree |
| Coating | Uncoated |
