Product Specifications
| Manufacturer Part Number | BB12-360750G |
| Minimum Bore Diameter (Decimal Inch) | 0.380" |
| Head Width (Decimal Inch) | 0.360" |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 0.750" |
| Maximum Bore Depth (Inch) | 3/4" |
| Projection (Decimal Inch) | 0.090" |
| Shank Diameter (Decimal Inch) | 0.370" |
| Shank Diameter (Inch) | 3/8" |
| Centerline Offset | 0.1725" |
| Corner Radius (Decimal Inch) | 0.012" |
| Radius (Decimal Inch) | 0.012" |
| Neck Diameter (Decimal Inch) | 0.270" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (Inch) | 2-1/2" |
| Coating | TiN |

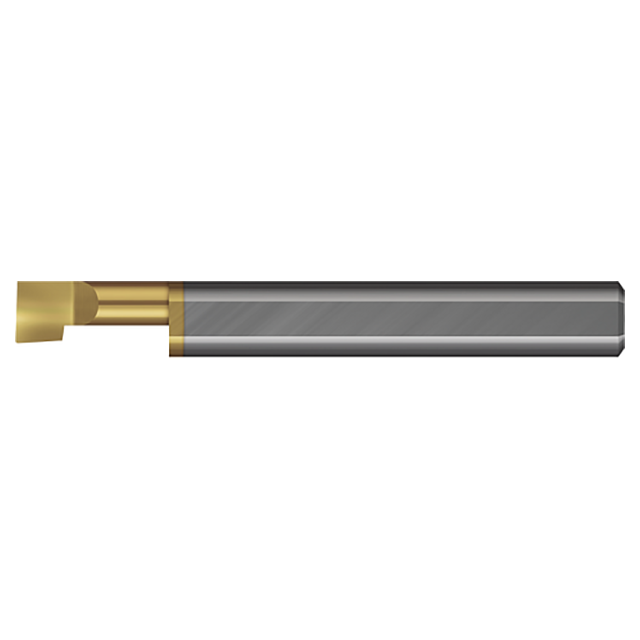

| Product Type | Boring Bar |
