Product Specifications
| Manufacturer Part Number | BB-1601250SG |
| Minimum Bore Diameter (Decimal Inch) | 0.1760" |
| Maximum Bore Diameter (Decimal Inch) | 1.250" |
| Maximum Bore Diameter (Inch) | 1-1/4" |
| Head Width (Decimal Inch) | 0.160" |
| Projection (Decimal Inch) | 0.0400" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Split Length (Decimal Inch) | 0.140" |
| Split Length (Inch) | 9/64" |
| Shank Diameter(mm) | 0.0663" |
| Hand Direction | Right Hand |
| Face Dimension (Decimal Inch) | 0.094" |
| Neck Diameter (Decimal Inch) | 0.1200" |
| Overall Length (Decimal Inch) | 2.50" |
| Overall Length (Inch) | 2-1/2" |
| Tooth Width (Decimal Inch) | 0.1250" |
| Tooth Width (Inch) | 0.1250" |
| Coating | TiN |

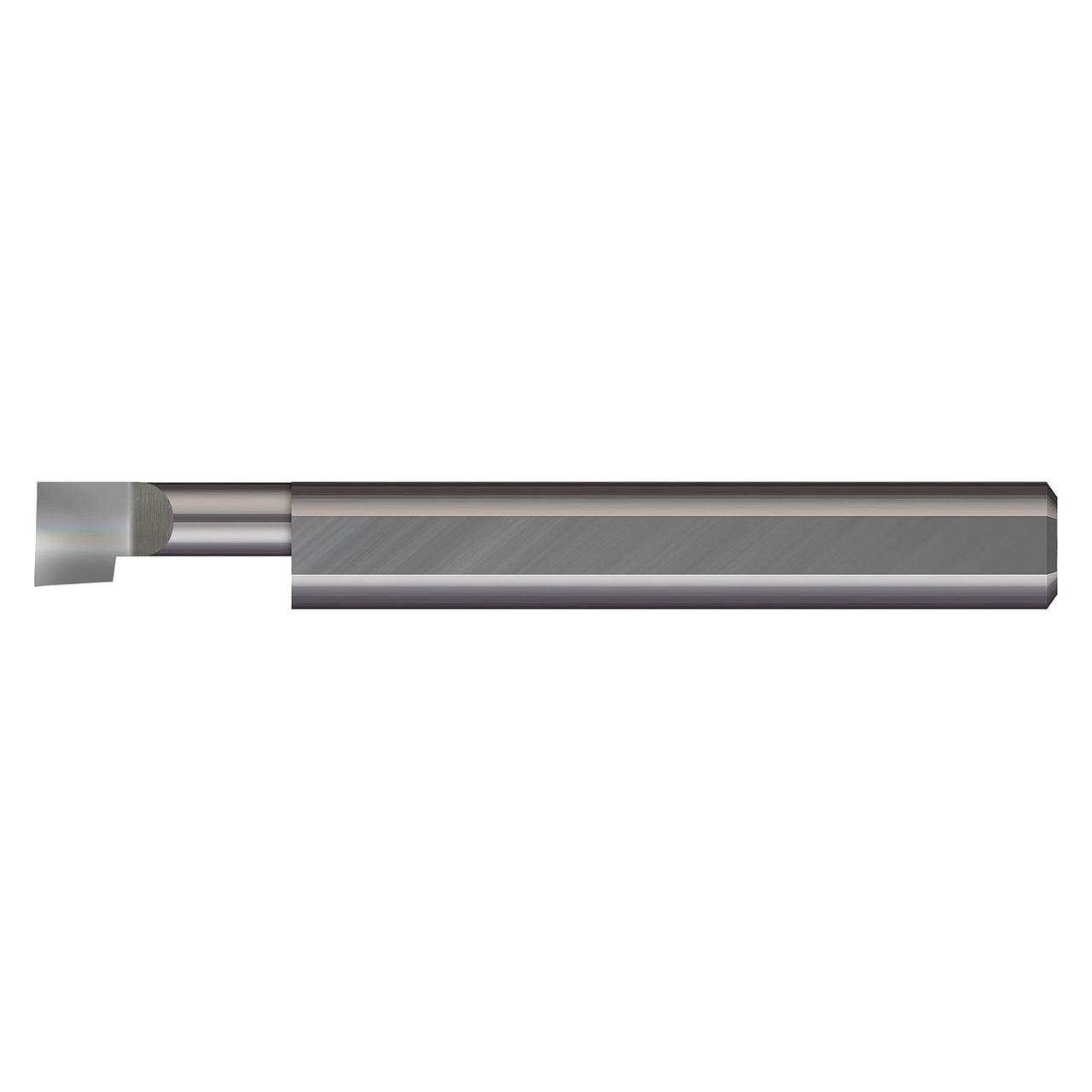

| Product Type | Boring Bar |
