Product Specifications
| Manufacturer Part Number | BB-1201000SG |
| Minimum Bore Diameter (Decimal Inch) | 0.1320" |
| Maximum Bore Diameter (Decimal Inch) | 1.000" |
| Maximum Bore Diameter (Inch) | 1" |
| Head Width (Decimal Inch) | 0.120" |
| Projection (Decimal Inch) | 0.0300" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Split Length (Decimal Inch) | 0.140" |
| Split Length (Inch) | 9/64" |
| Shank Diameter(mm) | 0.0263" |
| Hand Direction | Right Hand |
| Face Dimension (Decimal Inch) | 0.094" |
| Neck Diameter (Decimal Inch) | 0.0900" |
| Overall Length (Decimal Inch) | 2.00" |
| Overall Length (Inch) | 2" |
| Tooth Width (Decimal Inch) | 0.1250" |
| Tooth Width (Inch) | 0.1250" |
| Coating | TiN |

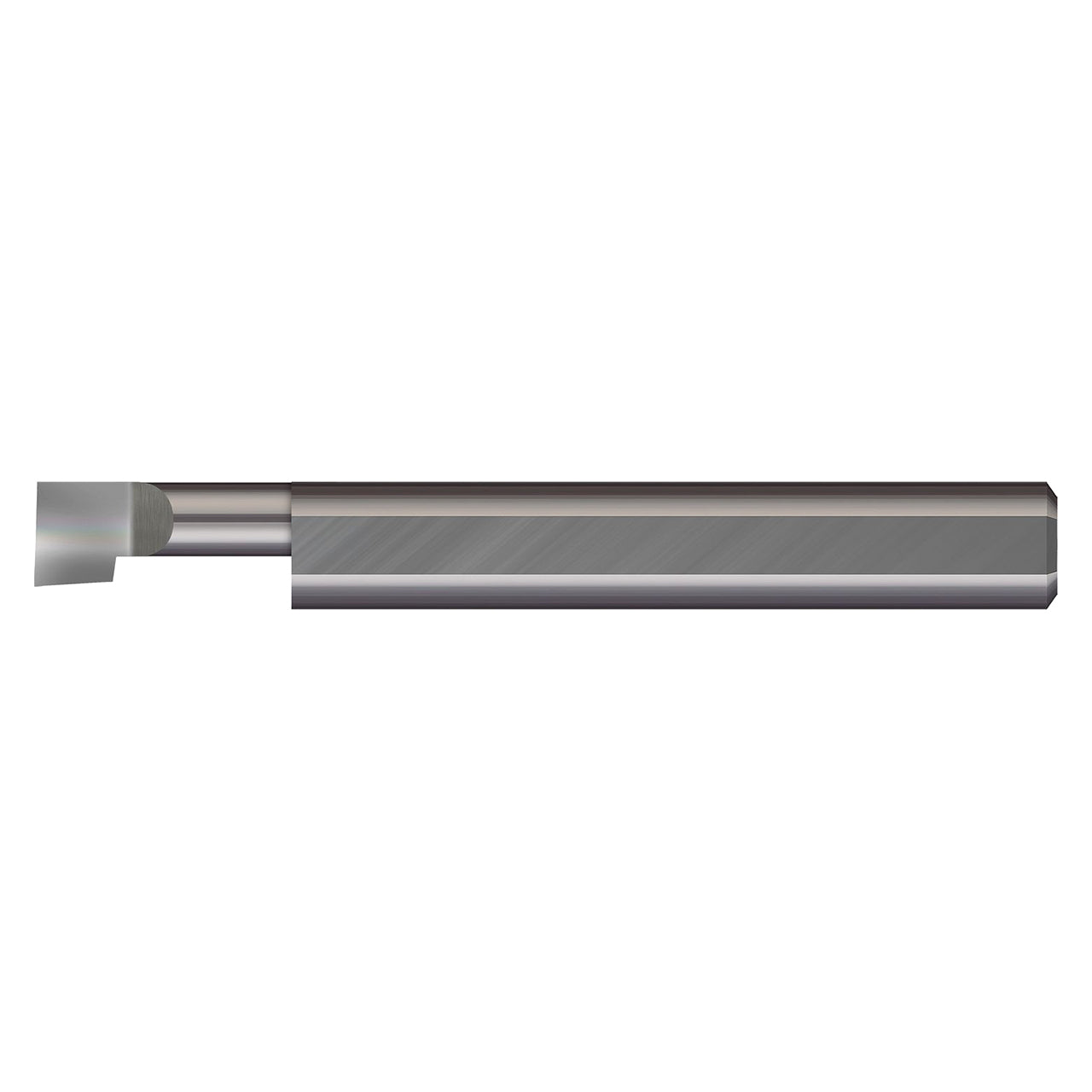

| Product Type | Boring Bar |
