Product Specifications
| Manufacturer Part Number | BB-100800S |
| Minimum Bore Diameter (Decimal Inch) | 0.1100" |
| Minimum Bore Diameter (mm) | 2.80mm |
| Maximum Bore Diameter (Decimal Inch) | 0.800" |
| Head Width (Decimal Inch) | 0.100" |
| Projection (Decimal Inch) | 0.0250" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (Inch) | 1/8" |
| Split Length (Decimal Inch) | 0.085" |
| Shank Diameter(mm) | 0.0375" |
| Hand Direction | Right Hand |
| Face Dimension (Decimal Inch) | 0.063" |
| Face Dimension (Inch) | 1/16" |
| Neck Diameter (Decimal Inch) | 0.0750" |
| Neck Diameter (mm) | 1.90mm |
| Overall Length (Decimal Inch) | 2.00" |
| Overall Length (Inch) | 2" |
| Tooth Width (Decimal Inch) | 0.0700" |
| Coating | Uncoated |

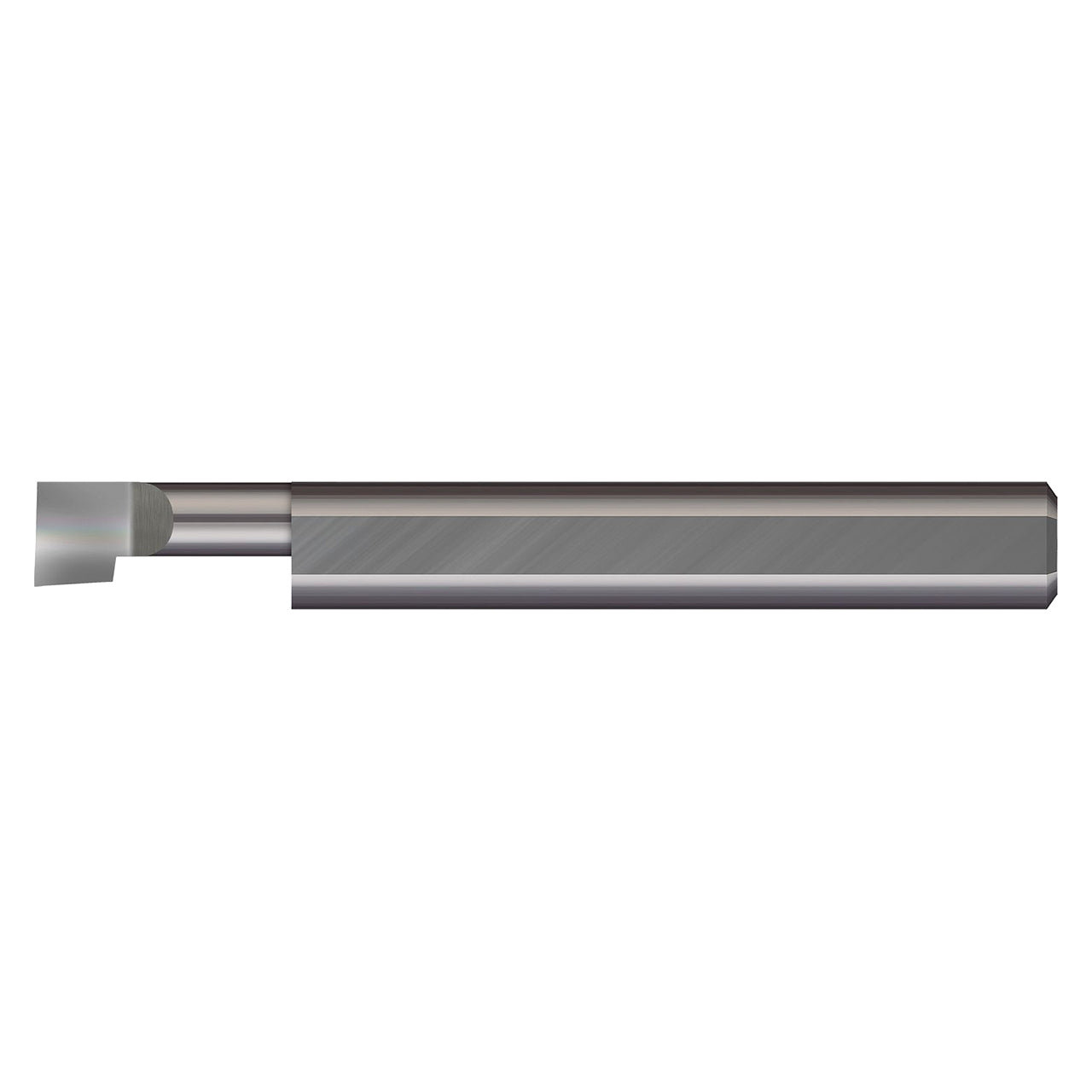

| Product Type | Boring Bar |
