Micro 100

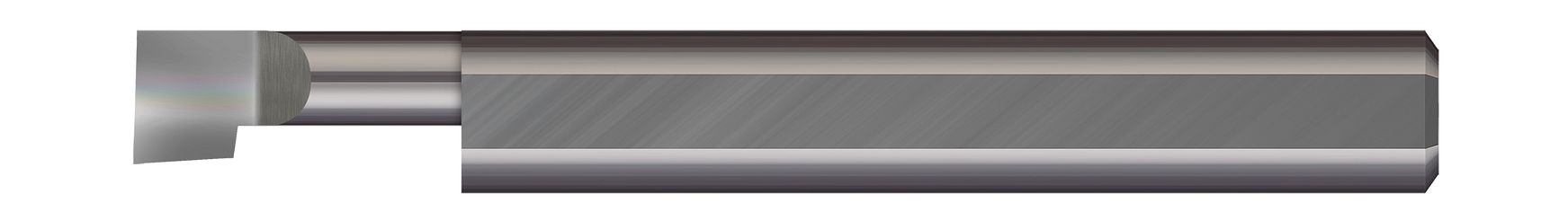

Micro 100 BB-090200S | 0.1000" Minimum Bore Diameter x 0.200" Maximum Bore Depth x 1/8" Shank x 1-1/2" OAL Uncoated Carbide Boring Bar

Micro 100 BB-090200S | 0.1000" Minimum Bore Diameter x 0.200" Maximum Bore Depth x 1/8" Shank x 1-1/2" OAL Uncoated Carbide Boring Bar

SKU: 10232854

$28.15 USD
$28.15 USD $28.15 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

Designed for facing and boring applications in bores .044" and larger, this right hand, sharp boring tool is engineered with a polished split face for improved edge retention and chip evacuation.

  • Designed for facing and boring applications in bores .044" and larger
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Sharp corner profile
  • Lockdown flat automatically locates tool on center
  • Coating options provide added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.1000"
Hand Direction Right Hand
Finish/Coating Uncoated
Max Bore Depth (Inch) 0.200"
Projection (Inch) 0.0200"
Shank Diameter (Inch) 0.1250" (1/8)
Centerline Offset (Inch) 0.0275"
Neck Diameter (Inch) 0.0700"
Overall Length (Inch) 1.50" (1-1/2)
