Product Specifications
| Manufacturer Part Number | BB-050250S |
| Minimum Bore Diameter (Decimal Inch) | 0.0550" |
| Minimum Bore Diameter (mm) | 1.40mm |
| Maximum Bore Diameter (Decimal Inch) | 0.250" |
| Maximum Bore Diameter (Inch) | 1/4" |
| Head Width (Decimal Inch) | 0.050" |
| Projection (Decimal Inch) | 0.0120" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (Inch) | 1/8" |
| Split Length (Decimal Inch) | 0.085" |
| Shank Diameter(mm) | 0.0125" |
| Hand Direction | Right Hand |
| Face Dimension (Decimal Inch) | 0.063" |
| Face Dimension (Inch) | 1/16" |
| Neck Diameter (Decimal Inch) | 0.0380" |
| Overall Length (Decimal Inch) | 1.50" |
| Overall Length (Inch) | 1-1/2" |
| Tooth Width (Decimal Inch) | 0.0700" |
| Coating | Uncoated |

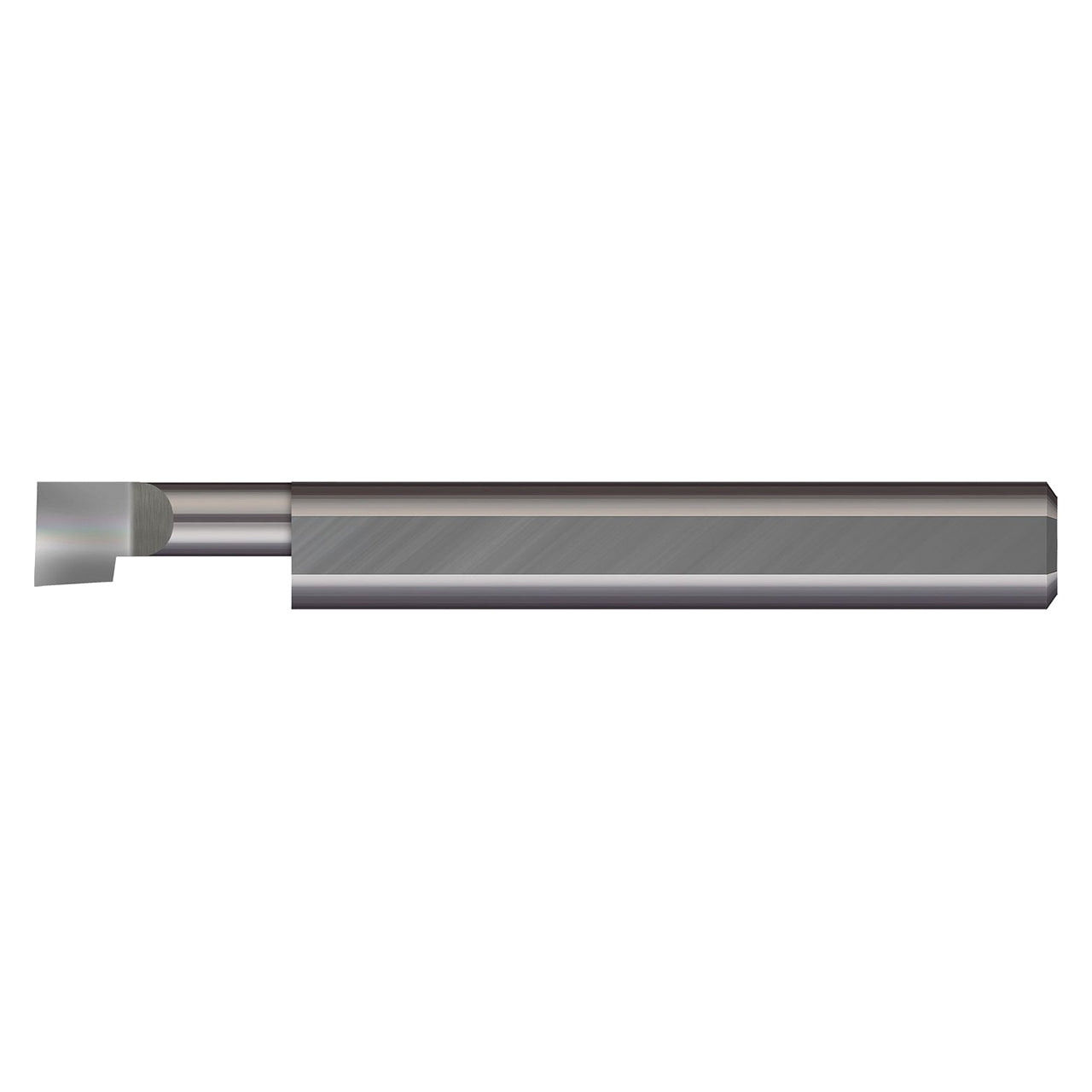

| Product Type | Boring Bar |
