Micro 100

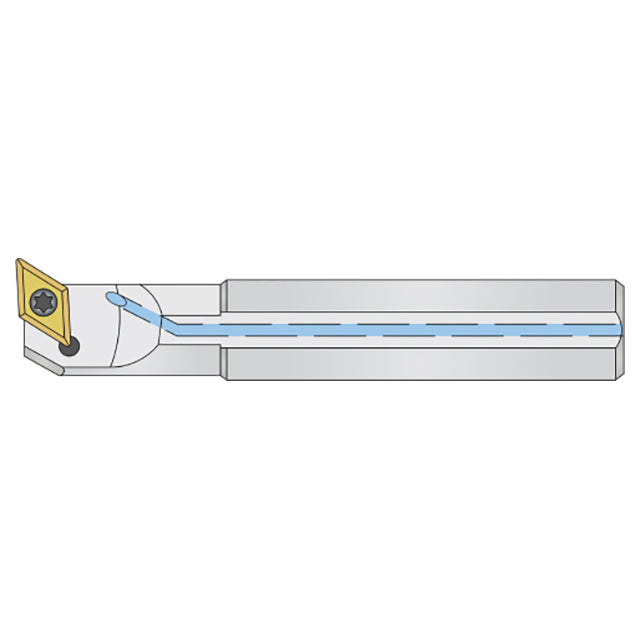

Micro 100 20-0936 | 0.7750" Minimum Bore Diameter x 5/8" Shank x 5.90" OAL A10M SDUCL 2 Yes Left Hand Indexable Boring, Facing & Profiling Bar, DCMT 21.51 Insert Style

Micro 100 20-0936 | 0.7750" Minimum Bore Diameter x 5/8" Shank x 5.90" OAL A10M SDUCL 2 Yes Left Hand Indexable Boring, Facing & Profiling Bar, DCMT 21.51 Insert Style

SKU: 23046372

$100.35 USD
$100.35 USD $100.35 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 5 Grams

View full details
Product Specifications
Min Bore Diameter (Decimal Inch) 0.7750"
Hand Direction Left Hand
Finish/Coating Uncoated
Shank Diameter (Inch) 5/8"
Shank Diameter (Decimal Inch) 0.6250"
Centerline Offset (Decimal Inch) 0.4330"
Indexable K Angle 93 Degree
Indexable Nomenclature A10M SDUCL 2
Insert Style DCMT 21.51
Micro 100 Insert Part 50-1200
Overall Length (Decimal Inch) 5.90"
