Micro 100

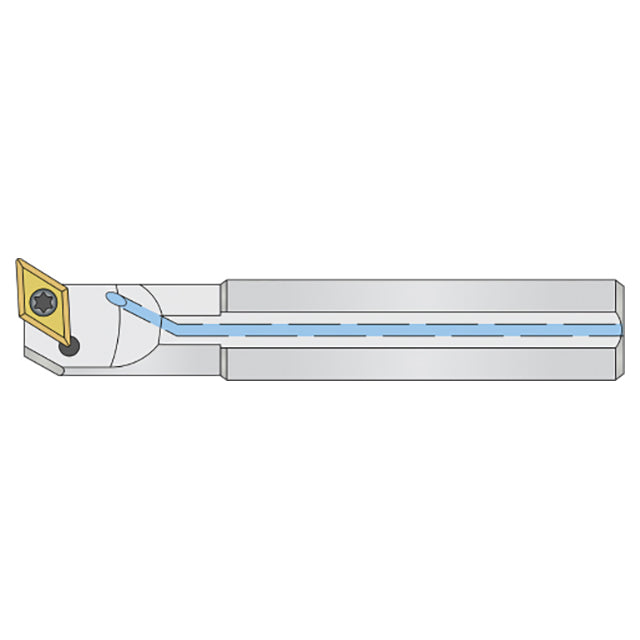

Micro 100 20-0934 | 0.6050" Minimum Bore Diameter x 1/2" Shank x 4.90" OAL A08K SDUCL 2 Yes Left Hand Indexable Boring, Facing & Profiling Bar, DCMT 21.51 Insert Style

Micro 100 20-0934 | 0.6050" Minimum Bore Diameter x 1/2" Shank x 4.90" OAL A08K SDUCL 2 Yes Left Hand Indexable Boring, Facing & Profiling Bar, DCMT 21.51 Insert Style

SKU: 23046370

$99.05 USD
$99.05 USD $99.05 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 5 Grams

View full details
Product Specifications
Min Bore Diameter (Decimal Inch) 0.6050"
Hand Direction Left Hand
Finish/Coating Uncoated
Shank Diameter (Inch) 1/2"
Shank Diameter (Decimal Inch) 0.5000"
Centerline Offset (Decimal Inch) 0.3540"
Indexable K Angle 93 Degree
Indexable Nomenclature A08K SDUCL 2
Insert Style DCMT 21.51
Micro 100 Insert Part 50-1200
Overall Length (Decimal Inch) 4.90"
