Micro 100

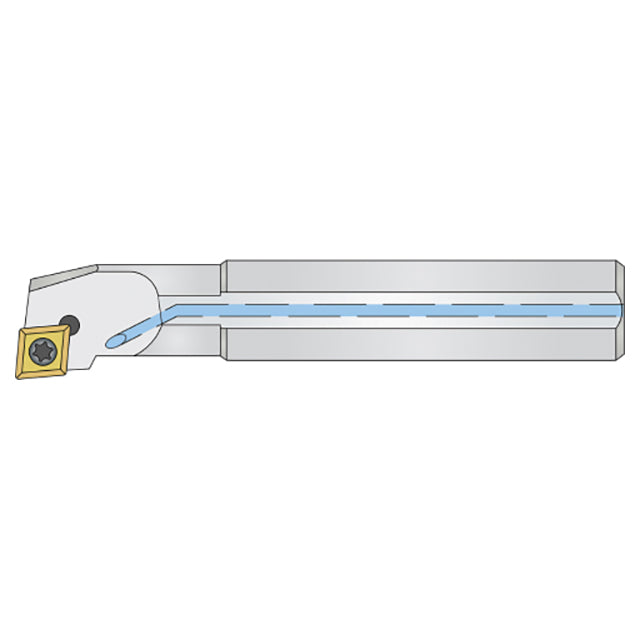

Micro 100 20-0829 | 0.7750" Minimum Bore Diameter x 5/8" Shank x 5.90" OAL A10M SCLCR 2 Yes Right Hand Indexable Boring Bar, CCMT 21.51 Insert Style

Micro 100 20-0829 | 0.7750" Minimum Bore Diameter x 5/8" Shank x 5.90" OAL A10M SCLCR 2 Yes Right Hand Indexable Boring Bar, CCMT 21.51 Insert Style

SKU: 23046358

$106.70 USD
$106.70 USD $106.70 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 5 Grams

View full details
Product Specifications
Min Bore Diameter (Decimal Inch) 0.7750"
Hand Direction Right Hand
Finish/Coating Uncoated
Shank Diameter (Inch) 5/8"
Shank Diameter (Decimal Inch) 0.6250"
Centerline Offset (Decimal Inch) 0.4330"
Indexable Nomenclature A10M SCLCR 2
Insert Style CCMT 21.51
Micro 100 Insert Part 50-1100
Overall Length (Decimal Inch) 5.90"
