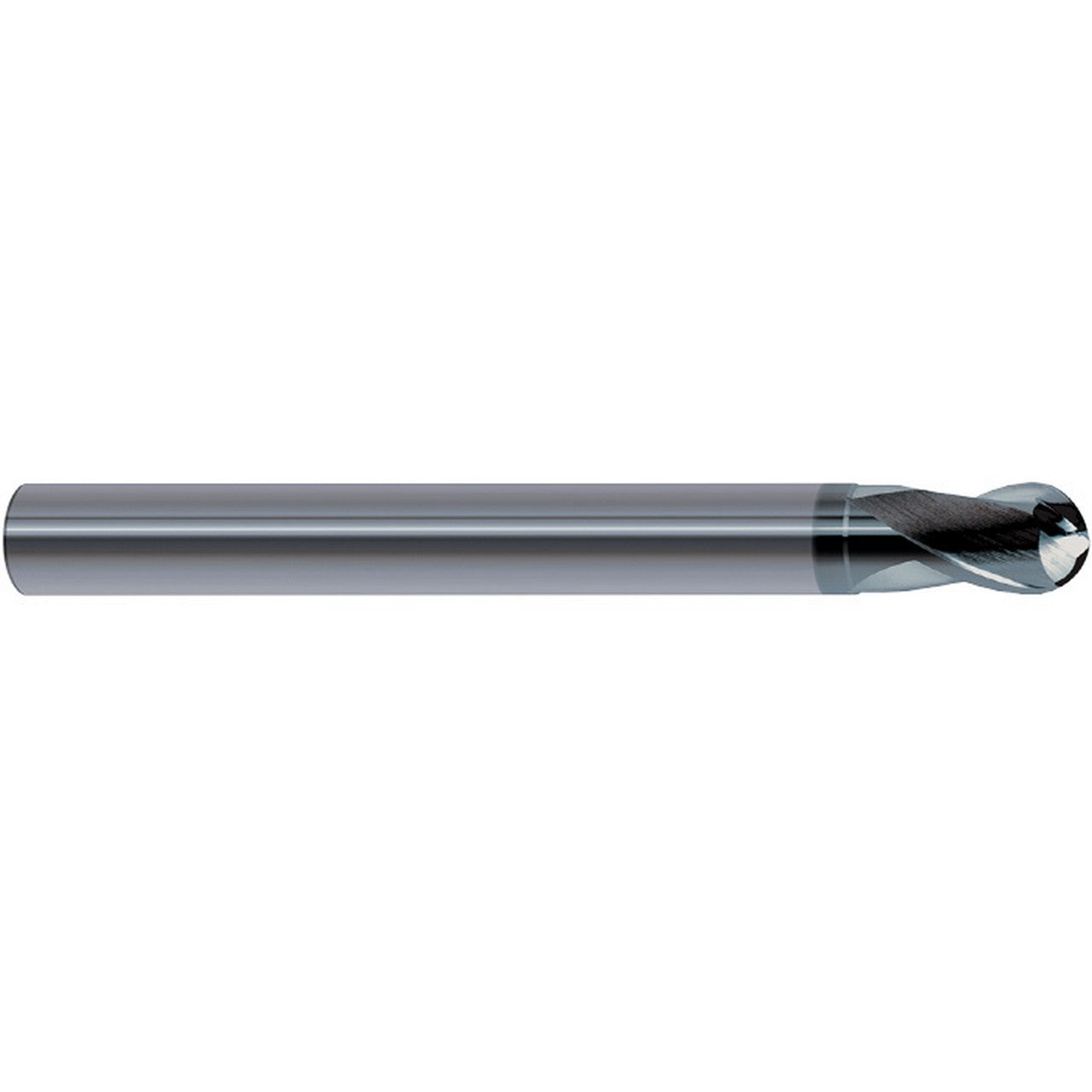

Features:
- Short flute length and rigid design to reduce deflection
- S-Gash Ball geometry minimizes load and heat produced during the cutting process, ultimately enhancing tool life
- Ideal for machining complex contoured shapes in hardened steels
- Recommended for materials 35 to 60 HRC (327 to 654 BHN)
Product Specifications
| Cutting Diameter (mm) | 2.5mm |
| Shank Diameter (mm) | 6.0mm |
| Length of Cut (mm) | 2.5mm |
| Overall Length (mm) | 76.0mm |
| Shank Length (mm) | 73.7mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Reach (mm) | 5.3mm |
| Helix Angle | 30 Degree |
| Coating | TX |
| Number of Flutes | 2 |
