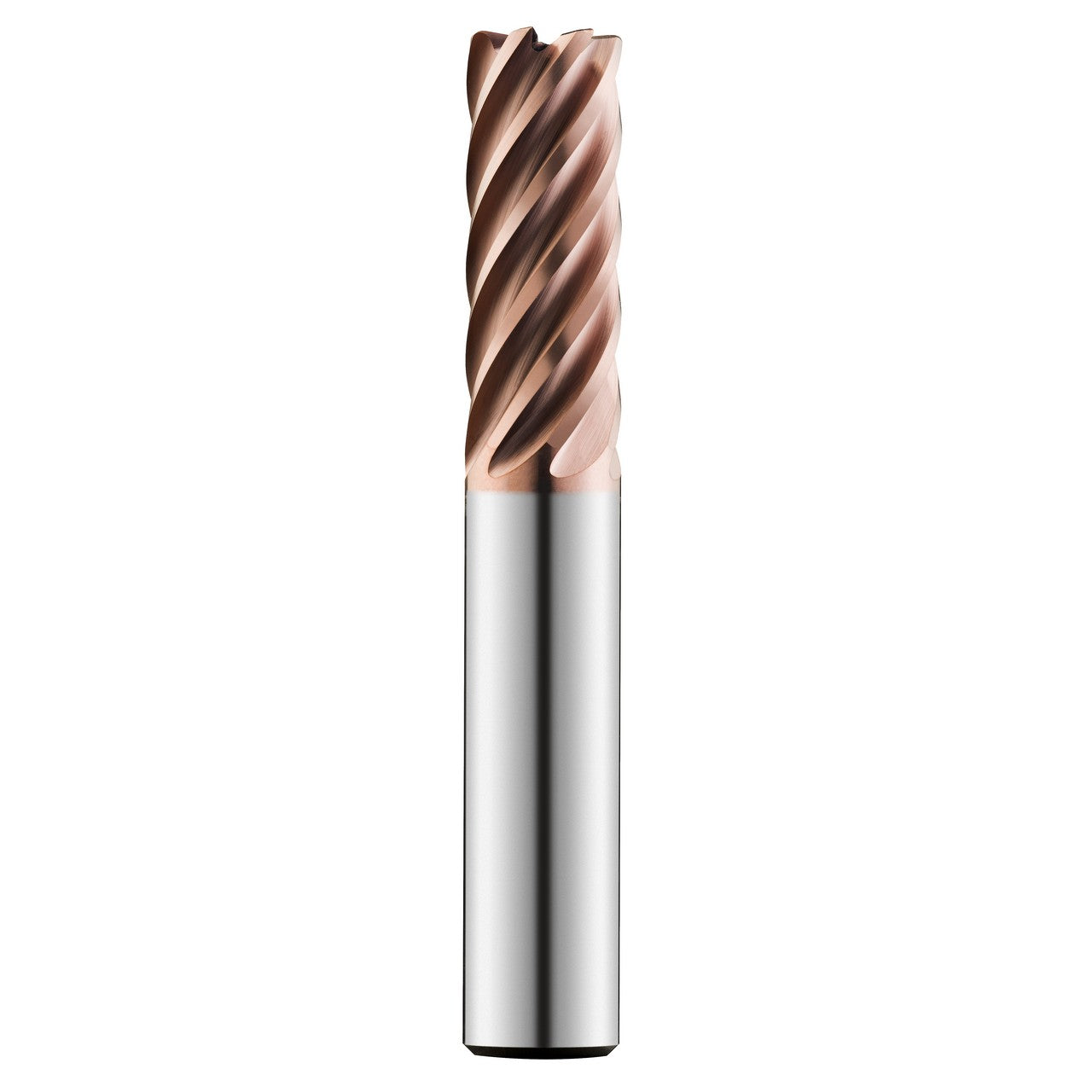

Features:
- Specializes in deep axial trochoidal and high-speed milling applications
- Optimized core improves rigidity, chip flow and reduces deflection
- Chip Breaker design breaks up chips from the long flute length allowing for better chip flow and evacuation in deep pocketing operations
- Recommended for materials ≤ 45 HRC (≤ 420 BHN)
Product Specifications
| Cutting Diameter (Inch) | 25.1 mm |
| Shank Diameter (Inch) | 25.1 mm |
| Length of Cut (Inch) | 100 mm |
| Overall Length (Inch) | 170 mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Cleared Length (Inch) | 100 mm |
| Corner Radius (Inch) | 1.0 mm |
| Helix Angle | 37 Degree |
| Coating | TM |
| Number of Flutes | 7 |
