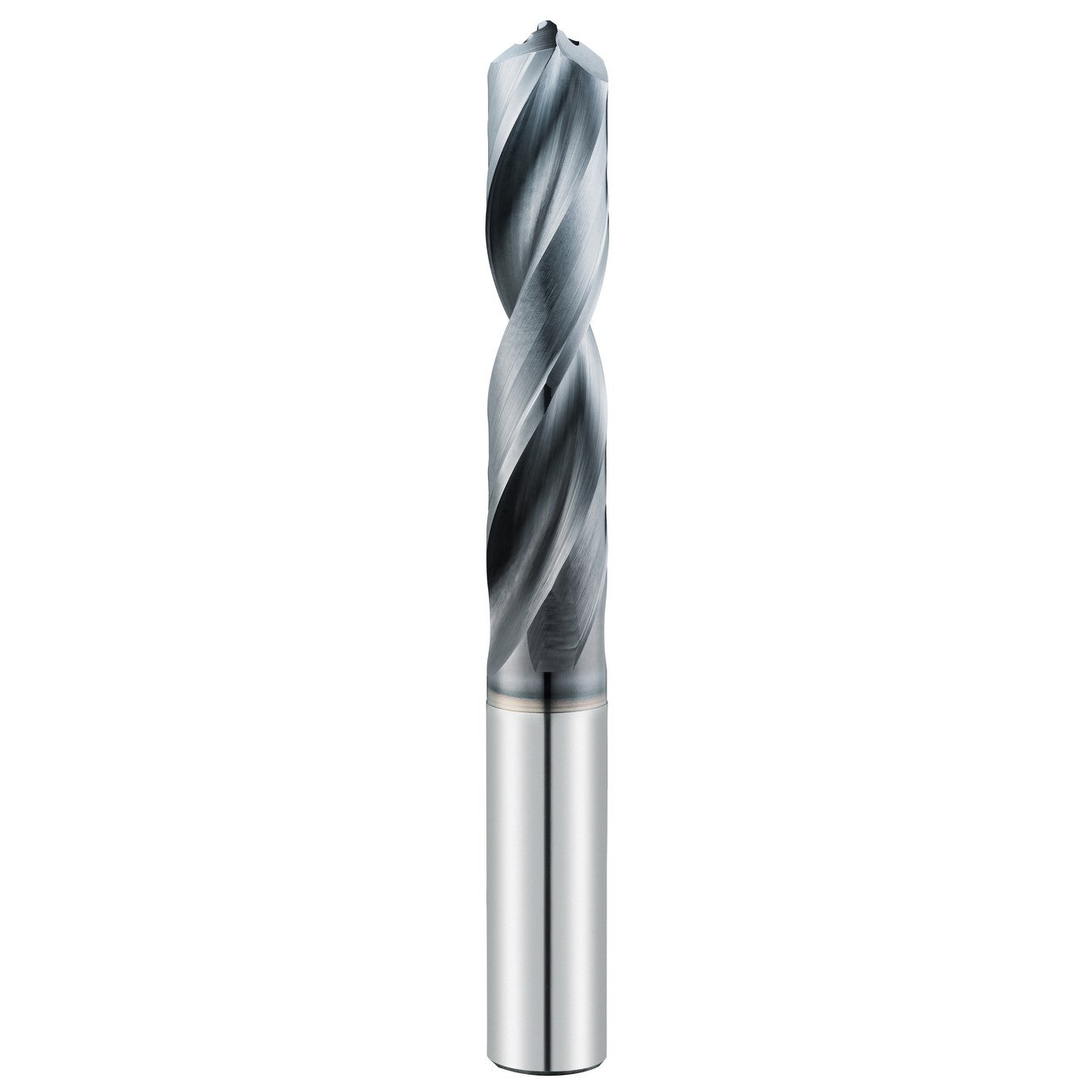

Features:
- Coolant through design improves coolant flow to extend tool life and aid in chip evacuation
- Eccentric 2-margin design reduces frictional heat and minimizes material adhesion to the margins without weakening the drill
- Computer controlled edge honing protects against chip damage
- High-performance point design stabilizes on contact for exceptional hole size and cylindricity allowing for low thrust force and extended tool life
- SGS Ti-NAMITE -A coating provides exceptional wear and erosion resistance when drilling heat resisting alloys like Inconel, Stainless Steel, and Titanium Alloys
- Recommended for materials ≤ 50HRC (475 BHN)
Product Specifications
| Cutting Diameter (mm) | 10.8mm |
| Shank Diameter (mm) | 12.0mm |
| Length of Cut (mm) | 55.0mm |
| Overall Length (mm) | 102mm |
| Shank Length (mm) | 45.0mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Cleared Length (mm) | 40 mm |
| Helix Angle | 30 Degree |
| Point Angle | 135 Degree |
| Coating | AlTiN |
| Number of Flutes | 2 |
