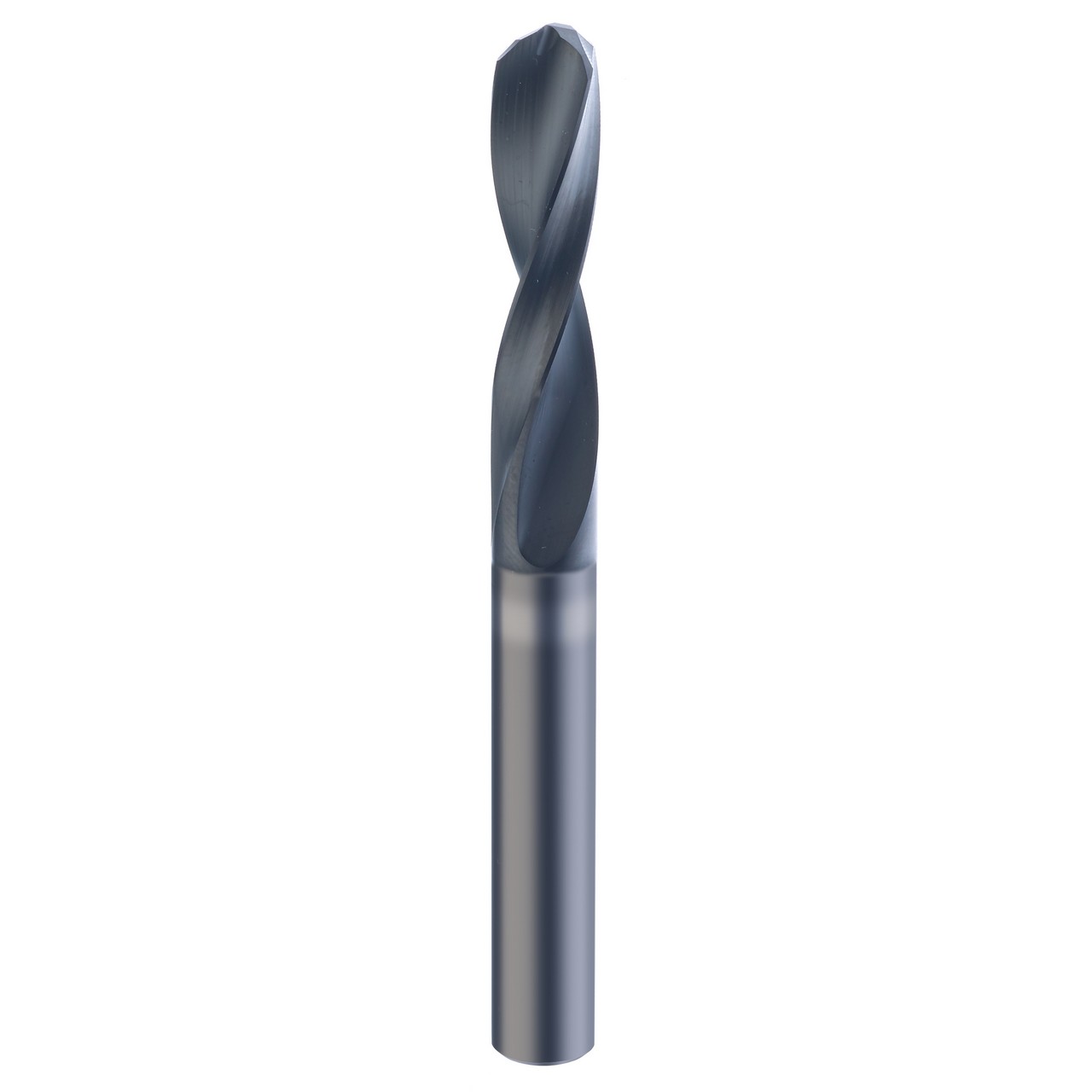

SGS 50029 | 7/16" Diameter x 1/2" Shank x 2-3/16" LOC x 4-1/4" OAL 2 Flute Crystalline Diamond Coated Screw Machine Length Drill Bit

SGS 50029 | 7/16" Diameter x 1/2" Shank x 2-3/16" LOC x 4-1/4" OAL 2 Flute Crystalline Diamond Coated Screw Machine Length Drill Bit

SKU: 10229053

$692.18 USD
$1,331.12 USD $692.18 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 23 Grams

View full details

Features:

  • Double margin design stabilizes the drill for greater hole accuracy and improved surface finish
  • Notched point reduces thrust force over conventional designs
  • 8 facet point reduces fiber breakout and delamination on exit
  • 90 degree secondary chamfer angle improves hole entrance and exit quality

Product Specifications
Cutting Diameter (Inch) 7/16"
Shank Diameter (Inch) 1/2"
Length of Cut (Inch) 2-3/16"
Overall Length (Inch) 4-1/4"
Shank Length (Inch) 1.575"
Cut of Direction Right Hand
Flute Type Spiral
Cleared Length (Inch) 1.7969"
Helix Angle 20 Degree
Point Angle 145 Degree
Coating Crystalline Diamond
Number of Flutes 2
