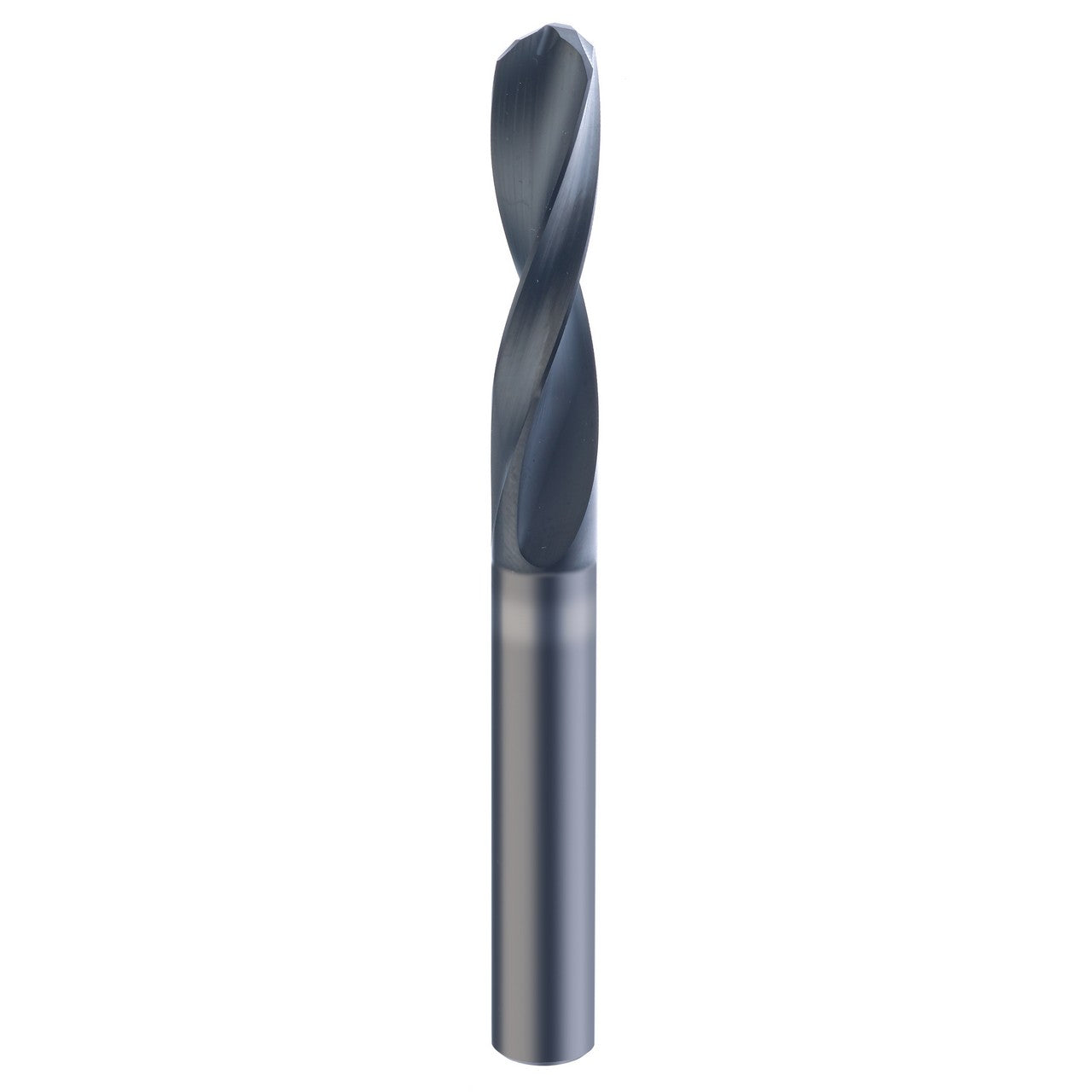

SGS 50026 | 3/8" Diameter x 3/8" Shank x 1-27/32" LOC x 3-1/2" OAL 2 Flute Crystalline Diamond Coated Screw Machine Length Drill Bit

SGS 50026 | 3/8" Diameter x 3/8" Shank x 1-27/32" LOC x 3-1/2" OAL 2 Flute Crystalline Diamond Coated Screw Machine Length Drill Bit

SKU: 10229050

$647.03 USD
$1,244.29 USD $647.03 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 73 Grams

View full details

Features:

  • Double margin design stabilizes the drill for greater hole accuracy and improved surface finish
  • Notched point reduces thrust force over conventional designs
  • 8 facet point reduces fiber breakout and delamination on exit
  • 90 degree secondary chamfer angle improves hole entrance and exit quality

Product Specifications
Cutting Diameter (Inch) 3/8"
Shank Diameter (Inch) 3/8"
Length of Cut (Inch) 1-27/32"
Overall Length (Inch) 3-1/2"
Shank Length (Inch) 1.563"
Cut of Direction Right Hand
Flute Type Spiral
Cleared Length (Inch) 1.5781"
Helix Angle 20 Degree
Point Angle 145 Degree
Coating Crystalline Diamond
Number of Flutes 2
