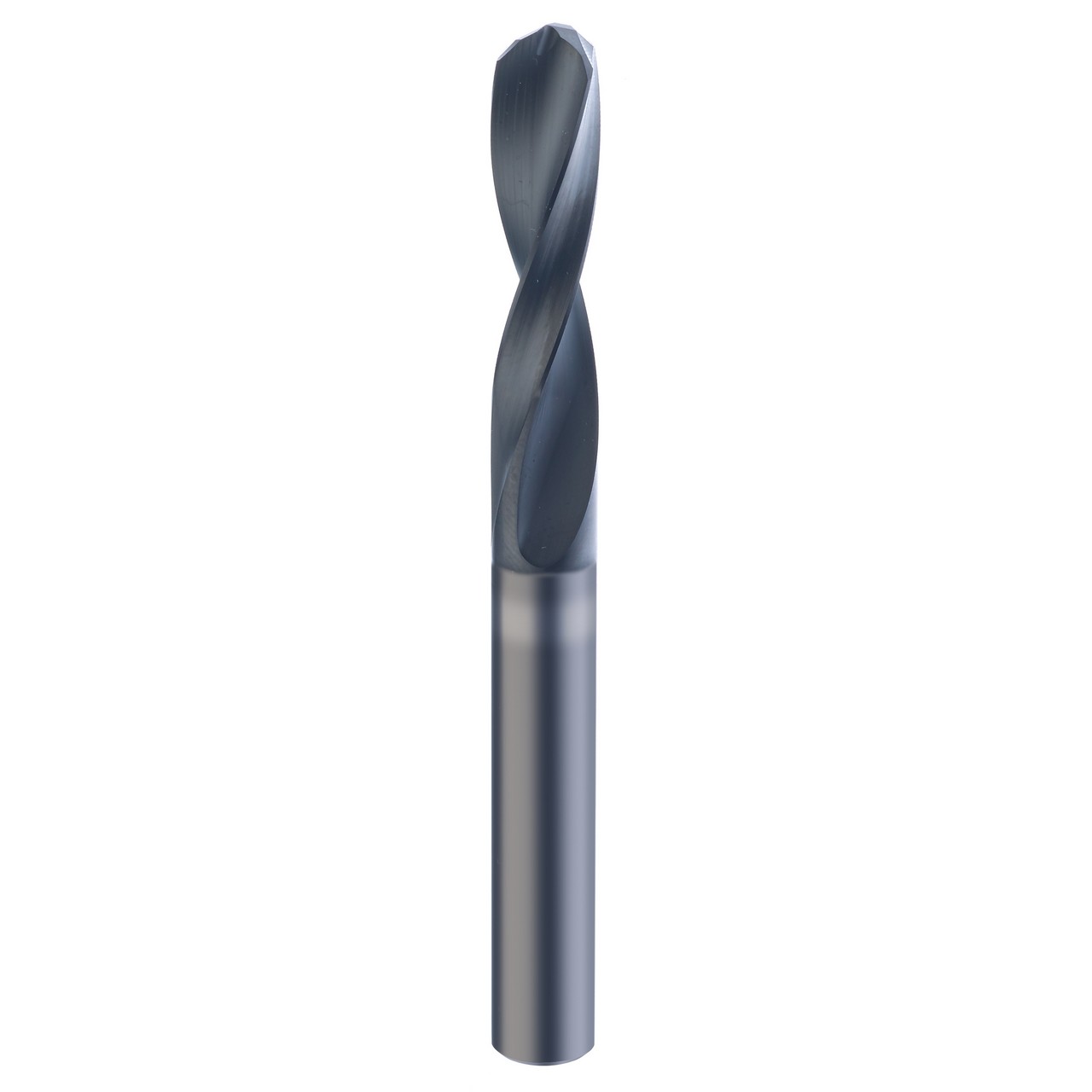

Features:
- Double margin design stabilizes the drill for greater hole accuracy and improved surface finish
- Notched point reduces thrust force over conventional designs
- 8 facet point reduces fiber breakout and delamination on exit
- 90 degree secondary chamfer angle improves hole entrance and exit quality
Product Specifications
| Cutting Diameter (mm) | 4.1mm |
| Shank Diameter (mm) | 6.0mm |
| Length of Cut (mm) | 24.0mm |
| Overall Length (mm) | 66.0mm |
| Shank Length (mm) | 36.0mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Cleared Length (mm) | 24.1 mm |
| Helix Angle | 20 Degree |
| Point Angle | 145 Degree |
| Coating | Crystalline Diamond |
| Number of Flutes | 2 |
