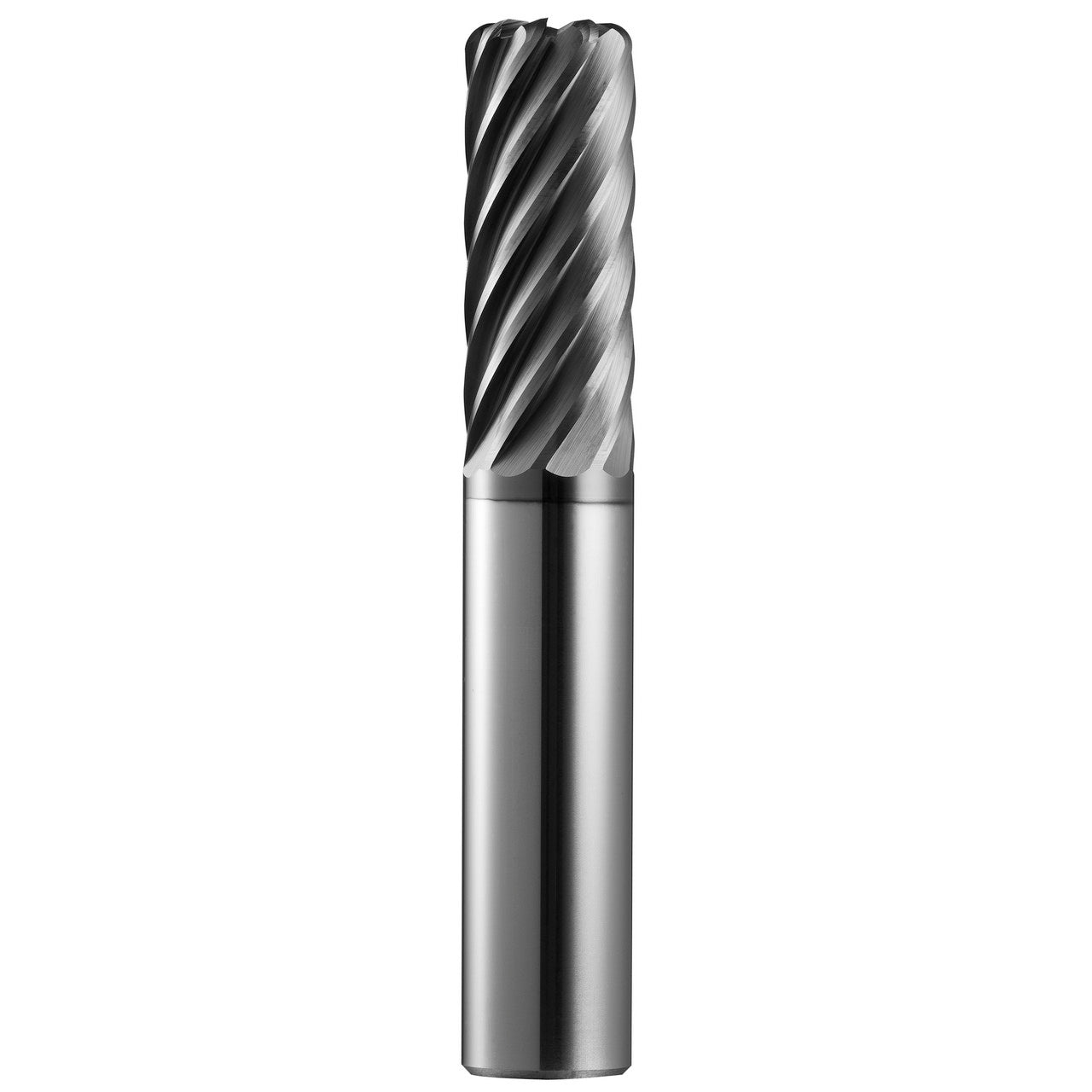

Features:
- Heavy core and rigid design allow for straight walls
- High flute count design results in smoother cutting performance and enhanced tool life in precise finishing applications
- Enhanced corner geometry with tight tolerance corner radius
- Recommended for materials ≤ 45 HRC (≤ 420 BHN)
Product Specifications
| Cutting Diameter (mm) | 16.0mm |
| Shank Diameter (mm) | 16.0mm |
| Length of Cut (mm) | 32.0mm |
| Overall Length (mm) | 92.0mm |
| Shank Length (mm) | 60.0mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Corner Radius (mm) | 3 mm |
| Helix Angle | 35 Degree |
| Coating | TX |
| Number of Flutes | 9 |
