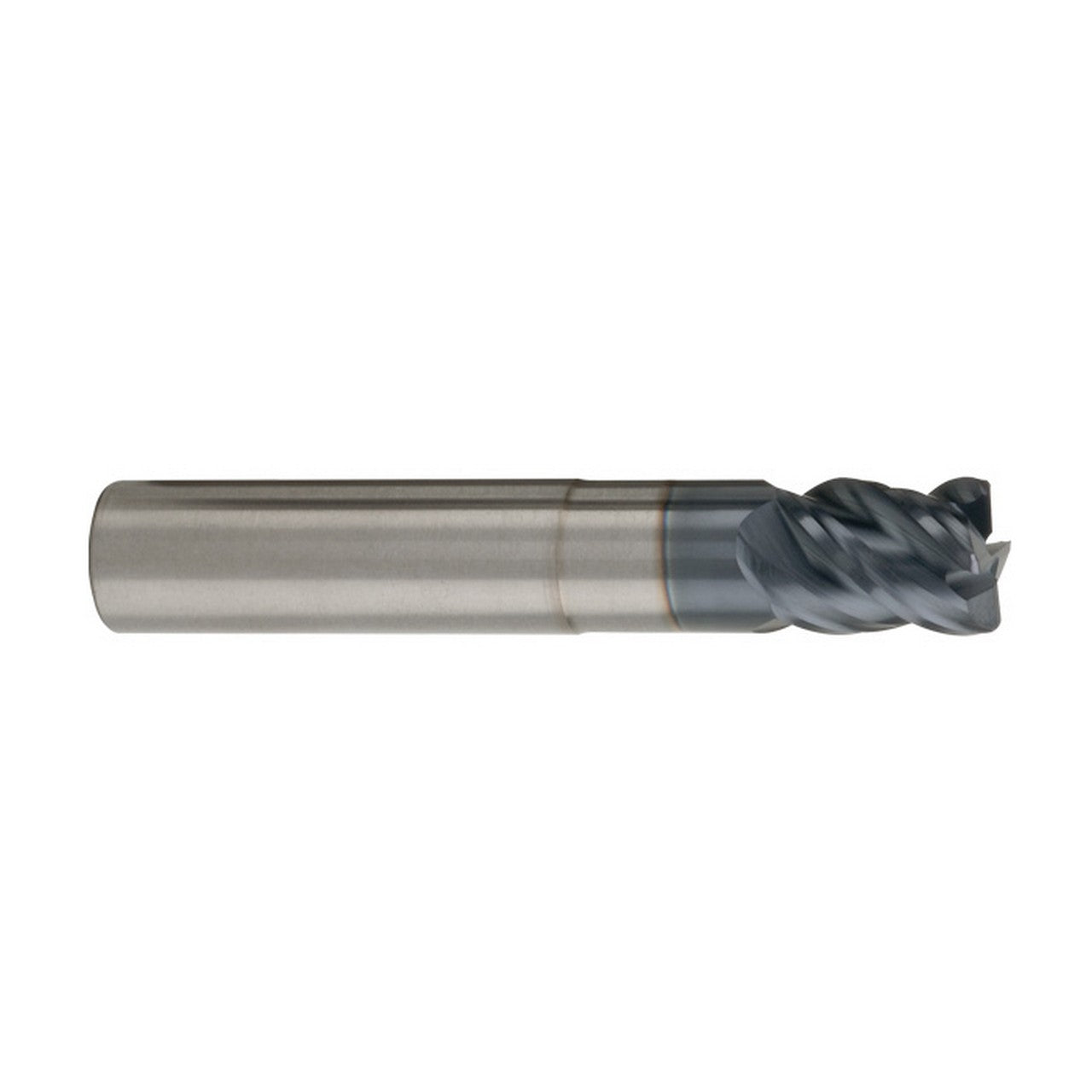

Features:
- The original Z-Carb design with negative rake, heavy core, and higher helix for strength and shearing of hard mold & die materials
- Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
- Enhanced corner geometry with tight tolerance corner radius
- Recommended for materials 35-60HRC (327 to 654 BHN)
Product Specifications
| Cutting Diameter (mm) | 3.0mm |
| Shank Diameter (mm) | 6.0mm |
| Length of Cut (mm) | 4.0mm |
| Overall Length (mm) | 57.0mm |
| Shank Length (mm) | 48.9mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Reach (mm) | 15mm |
| Corner Radius (mm) | 0.3 mm |
| Helix Angle | 42-45 Degree |
| Coating | TX |
| Number of Flutes | 4 |
