Features:
- Unequal helix design reduces damaging harmonics by changing the angle at which each cutting edge enters and exits the material
- Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
- Optimal material removal rates through increased feed and depths of cut

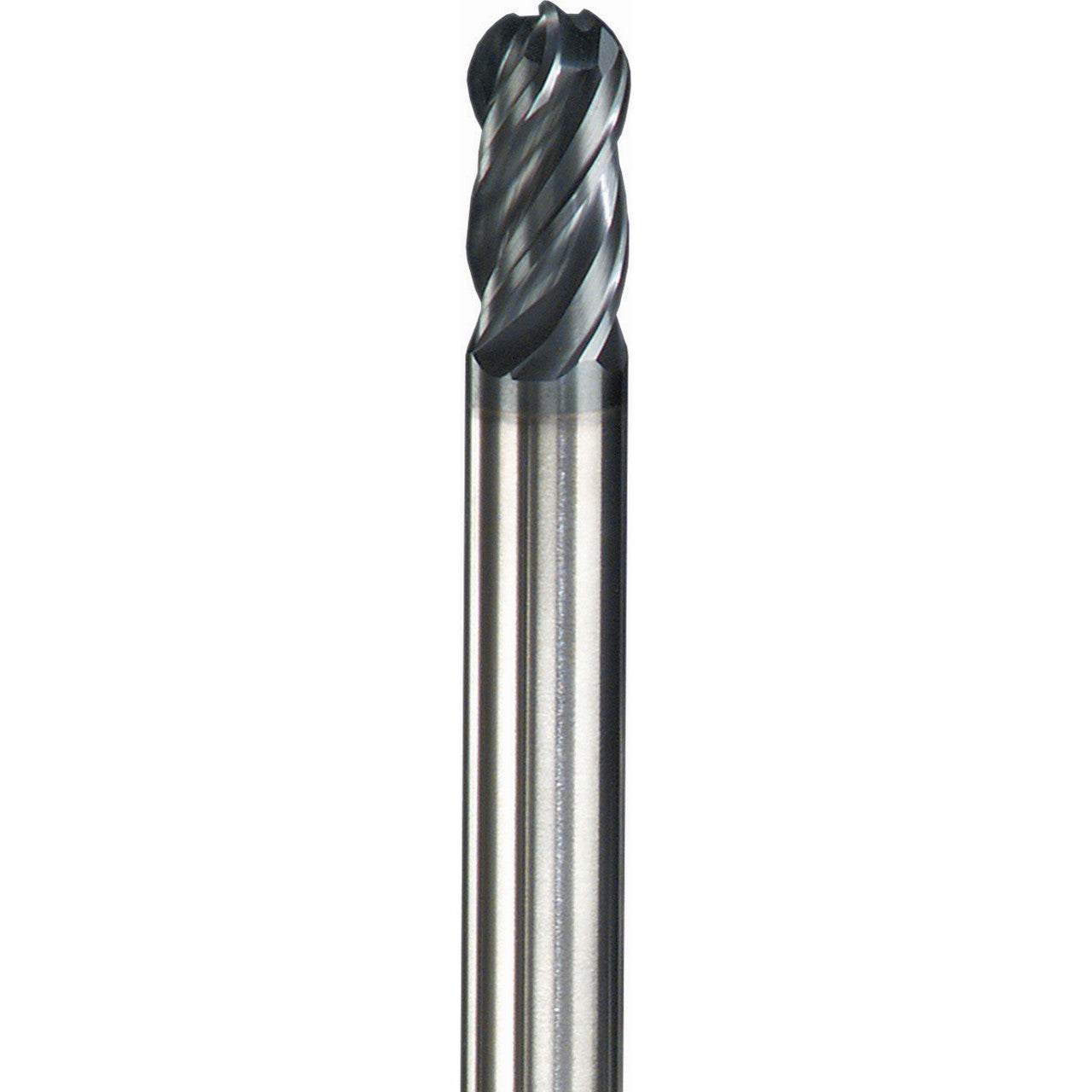

- Ball nose design ideal for finishing operations in complex workpieces
- Recommended for materials ≤ 45 HRC (≤ 420 BHN)
Product Specifications
| Cutting Diameter (mm) | 14.0mm |
| Shank Diameter (mm) | 14.0mm |
| Length of Cut (mm) | 26.0mm |
| Overall Length (mm) | 83.0mm |
| Shank Length (mm) | 57.0mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Helix Angle | 35-38 Degree |
| Coating | TX |
| Number of Flutes | 4 |
