Features:

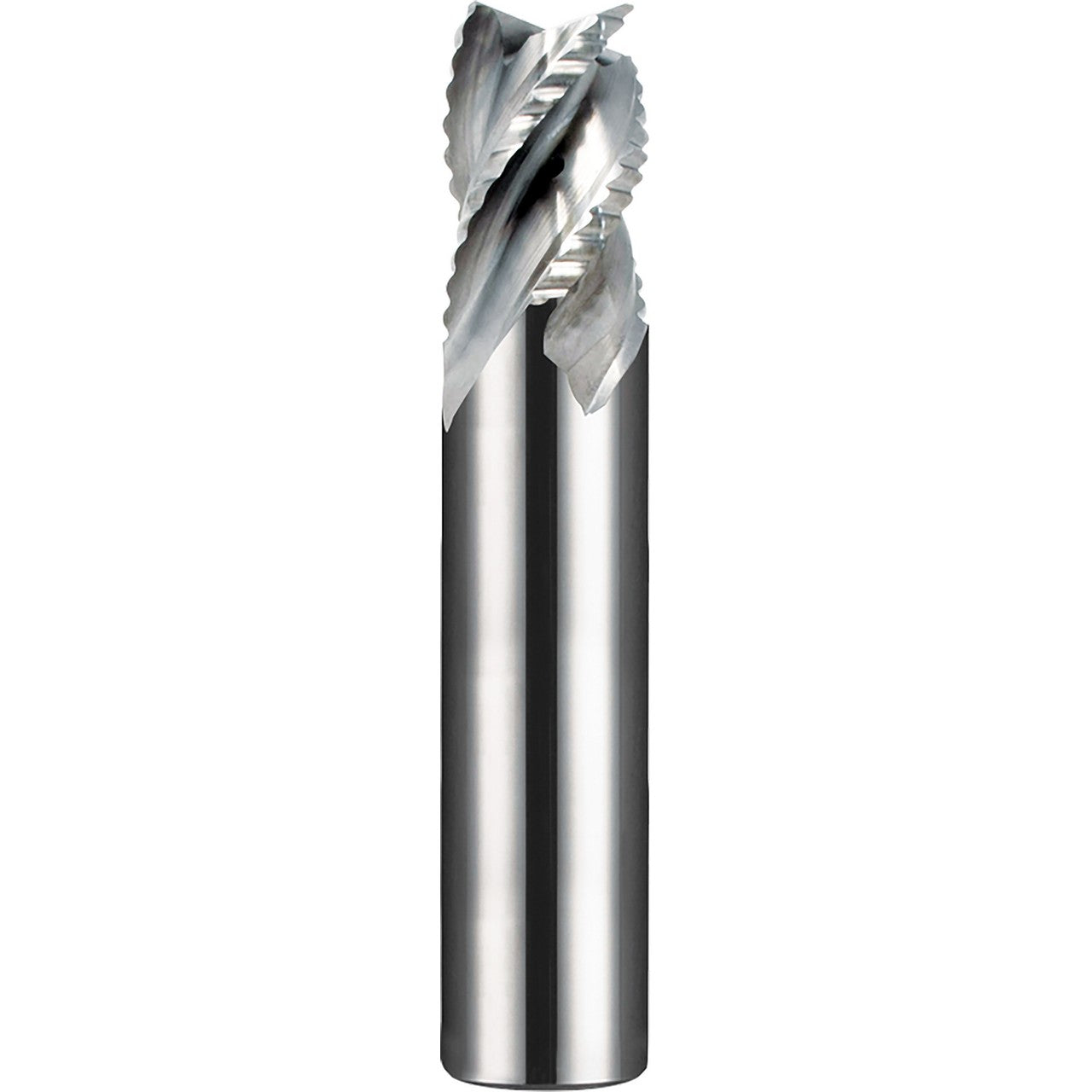

- Ultra high-productivity rougher for Aluminum alloys, specifically for aircraft components
- Designed for machine tools with capability of 12 l ³ per minute material removal rates
- 4 flute variable geometry with side exit coolant holes
- Open fluting for deep slotting and profiling
- Recommended for materials ≤ 150 BHN (≤ 7 HRC)
Product Specifications
| Cutting Diameter (mm) | 25.0mm |
| Shank Diameter (mm) | 25.0mm |
| Length of Cut (mm) | 35.0mm |
| Overall Length (mm) | 140mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Reach (mm) | 90mm |
| Corner Radius (mm) | 3 mm |
| Helix Angle | 38 Degree |
| Coating | TiB2 |
| Number of Flutes | 4 |
