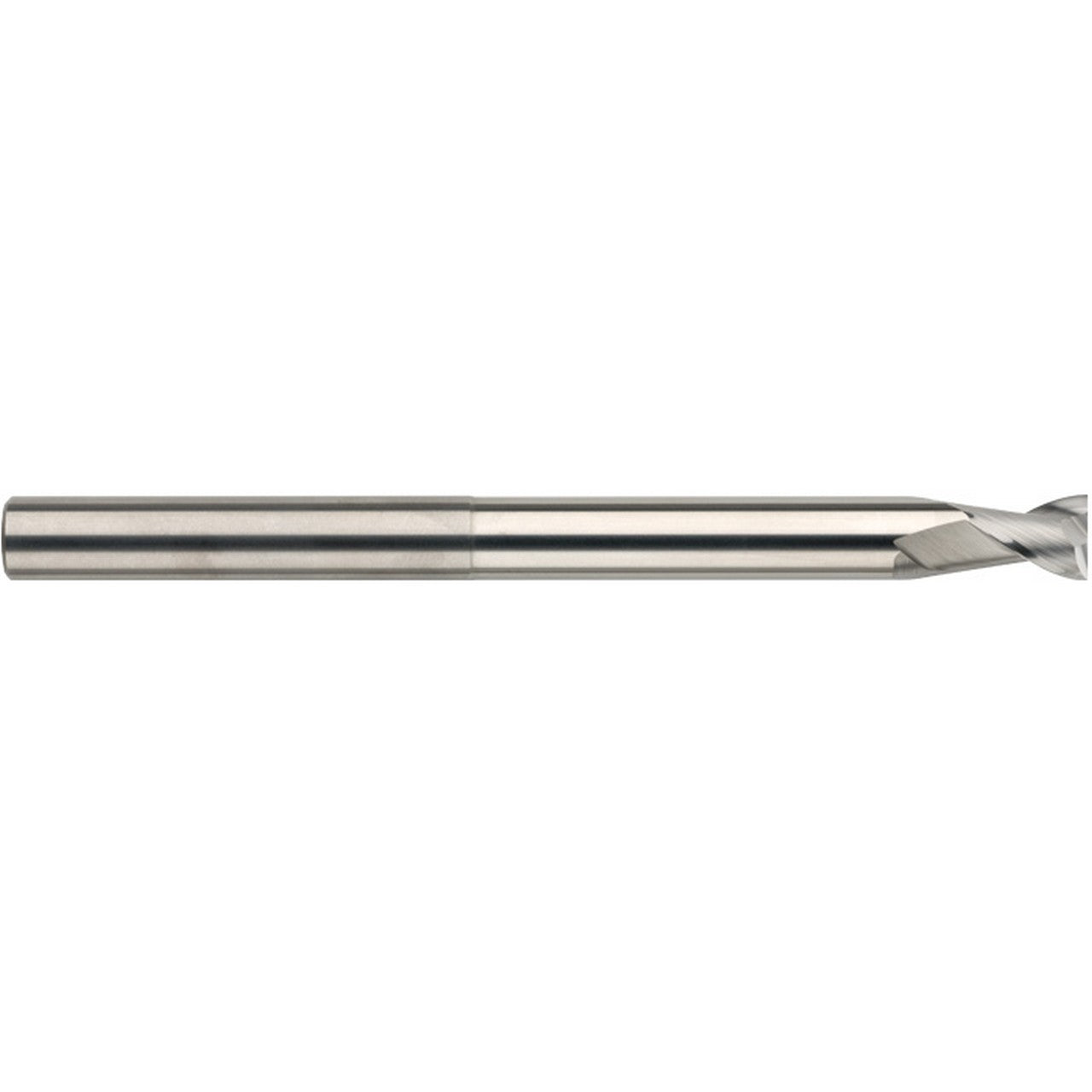

Features:
- Circular land reduces edge aggressiveness for varied speed and feed rates
- 2 Flutes effectively manage the large size and volume of chips produced during the aggressive machining process
- Excellent balance at high speeds and aggressive plunging capability
- Necked design with blended diameter transitions provide clearance to reach
- Recommended for materials ≤ 150 BHN (≤ 7 HRC)
Product Specifications
| Cutting Diameter (mm) | 6.0mm |
| Shank Diameter (mm) | 6.0mm |
| Length of Cut (mm) | 10.0mm |
| Overall Length (mm) | 100mm |
| Shank Length (mm) | 90.0mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Reach (mm) | 54.1mm |
| Helix Angle | 35 Degree |
| Coating | Uncoated |
| Number of Flutes | 2 |
