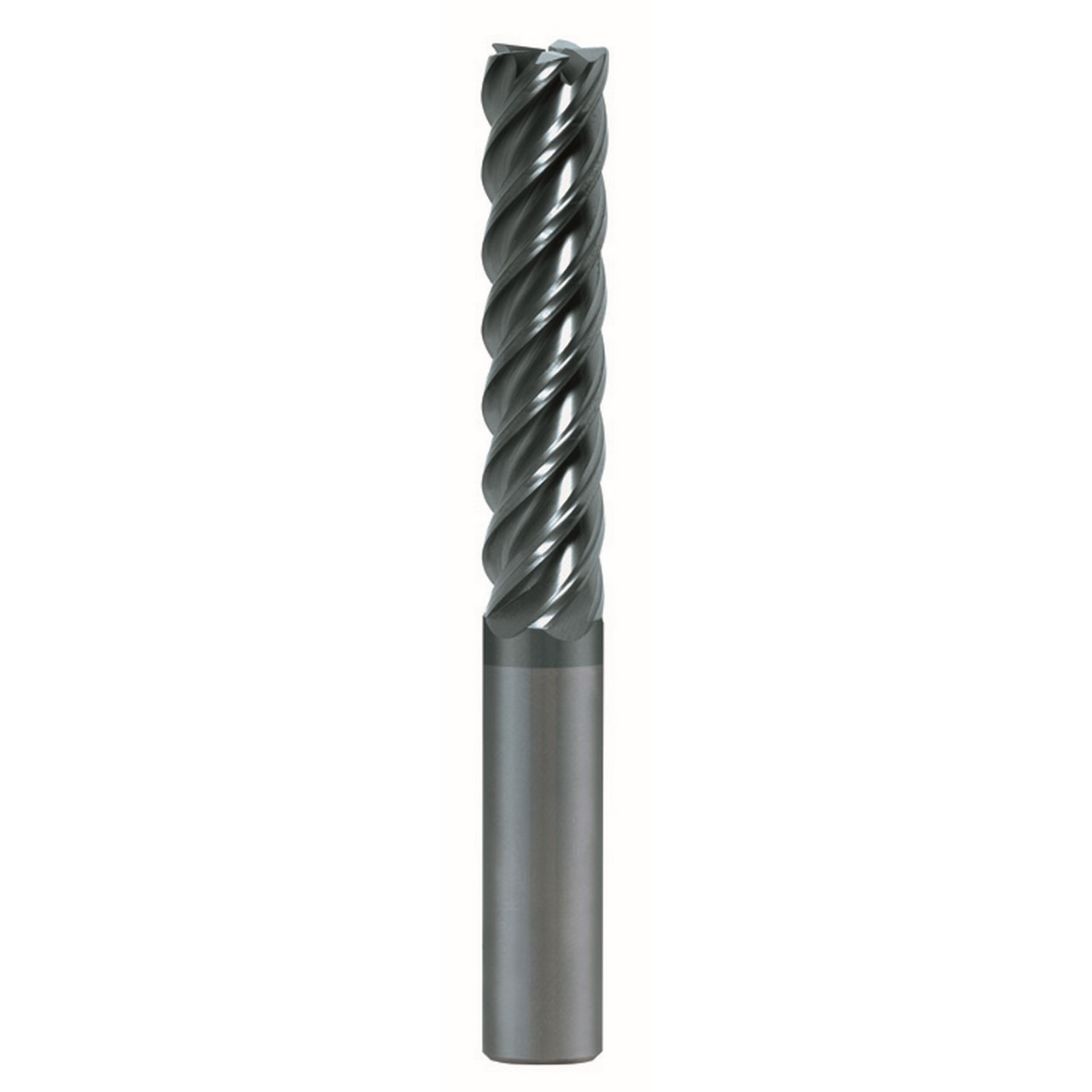

SGS 42656 | 16 mm Diameter x 16 mm Shank x 50 mm LOC x 100 mm OAL x 2.0 mm Radius 5 Flute AlTiN Coated Corner Radius End Mill

SGS 42656 | 16 mm Diameter x 16 mm Shank x 50 mm LOC x 100 mm OAL x 2.0 mm Radius 5 Flute AlTiN Coated Corner Radius End Mill

SKU: 25198645

$222.73 USD
$428.33 USD $222.73 USD
Sale Sold out
Shipping calculated at checkout.

UPC: 691781426563

Weight: 277 Grams

View full details

Features:

  • Unequal indexing, high helix and an ideal rake and relief combination for unmatched finishing capability
  • The choice when peak finish quality is the requirement
  • Enhanced corner geometry with tight tolerance corner radius
  • Recommended for materials ≤ 45 HRC (≤ 420 BHN)

Product Specifications
Cutting Diameter (Inch) 16 mm
Shank Diameter (Inch) 16 mm
Length of Cut (Inch) 50 mm
Overall Length (Inch) 100 mm
Shank Length (Inch) 50 mm
Cut of Direction RHC
Flute Type Spiral
Corner Radius (Inch) 2.0 mm
Helix Angle 45 Degree
Coating AlTiN
Number of Flutes 5
