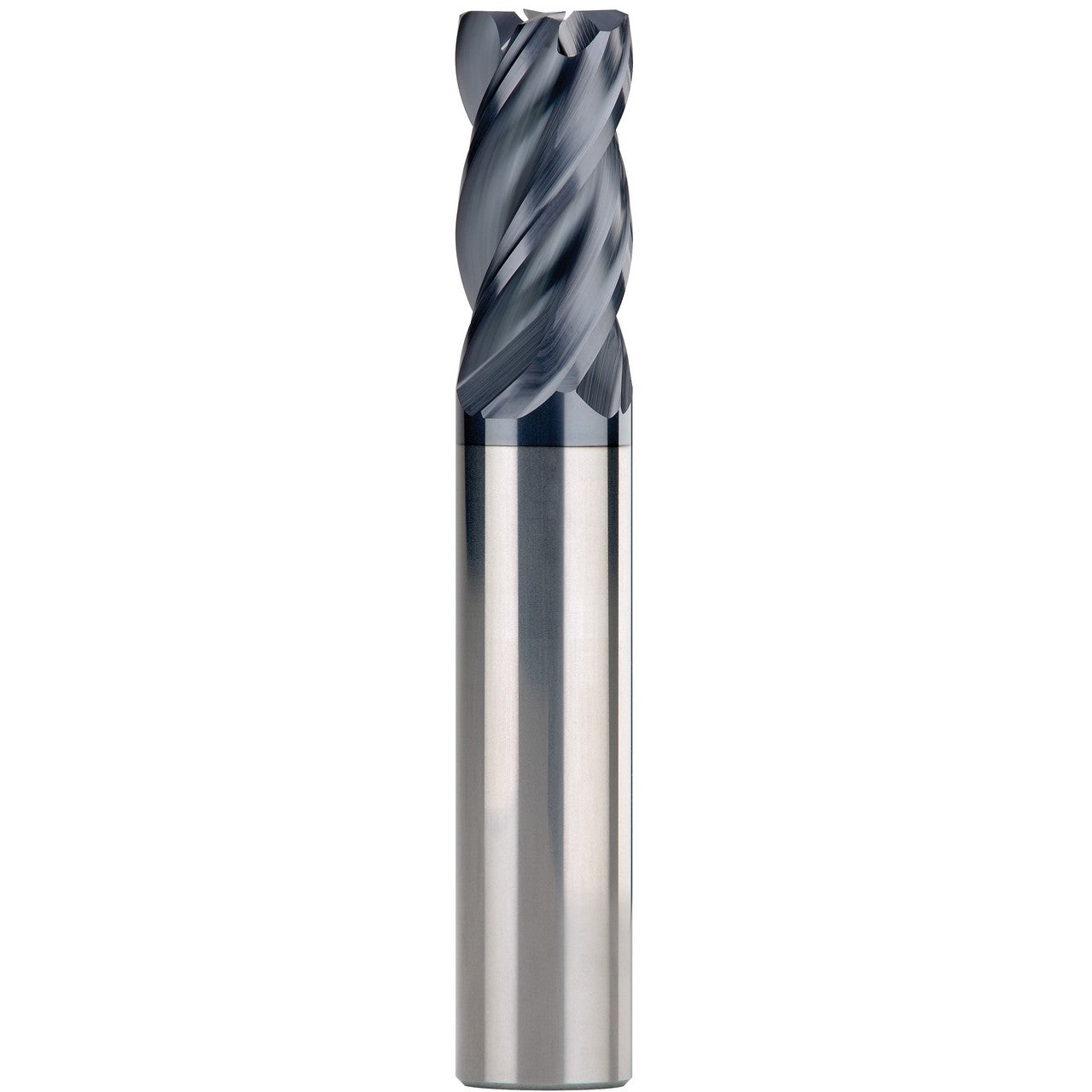

Features:
- Variable rake geometry alters and controls the cutting dynamic taking chatter suppression to an unprecedented level
- Unequal helix design changes the cutting angle to improve harmonics
- Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
- Long reach design allows for deeper and faster cuts
- Enhanced corner geometry with tight tolerance corner radius
- Recommended for materials ≤ 45 HRC (≤ 420 BHN)
Product Specifications
| Cutting Diameter (Inch) | 3/32" |
| Shank Diameter (Inch) | 1/8" |
| Length of Cut (Inch) | 9/32" |
| Overall Length (Inch) | 1-1/2" |
| Shank Length (Inch) | 1.22" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Corner Radius (Inch) | 0.01" |
| Helix Angle | 35-38 Degree |
| Coating | TX |
| Number of Flutes | 4 |
