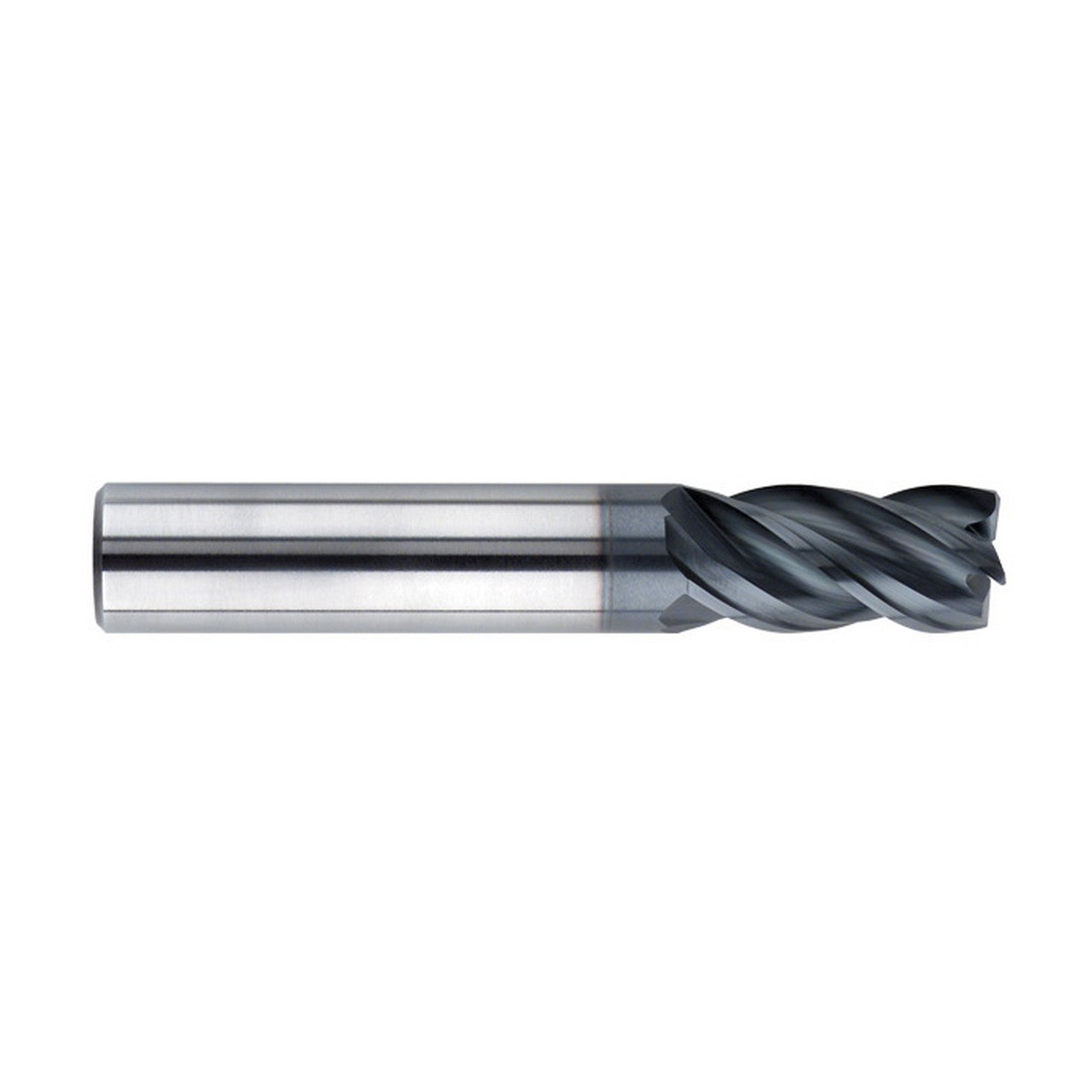

Features:
- The original Z-Carb design with an enhanced core and higher helix suited for the demands of high temperature alloys
- Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
- Optimal material removal rates through increased feed and depths of cut for difficult to machine materials
- Enhanced corner geometry with tight tolerance corner radius
- Recommended for materials ≤ 45 HRC (≤ 420 BHN)
Product Specifications
| Cutting Diameter (Inch) | 1.000" |
| Shank Diameter (Inch) | 1.000" |
| Length of Cut (Inch) | 1.500" |
| Overall Length (Inch) | 4.000" |
| Shank Length (Inch) | 2.500" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Corner Radius (Inch) | 0.040" |
| Helix Angle | 38-41 Degree |
| Coating | AlTiN |
| Number of Flutes | 4 |
