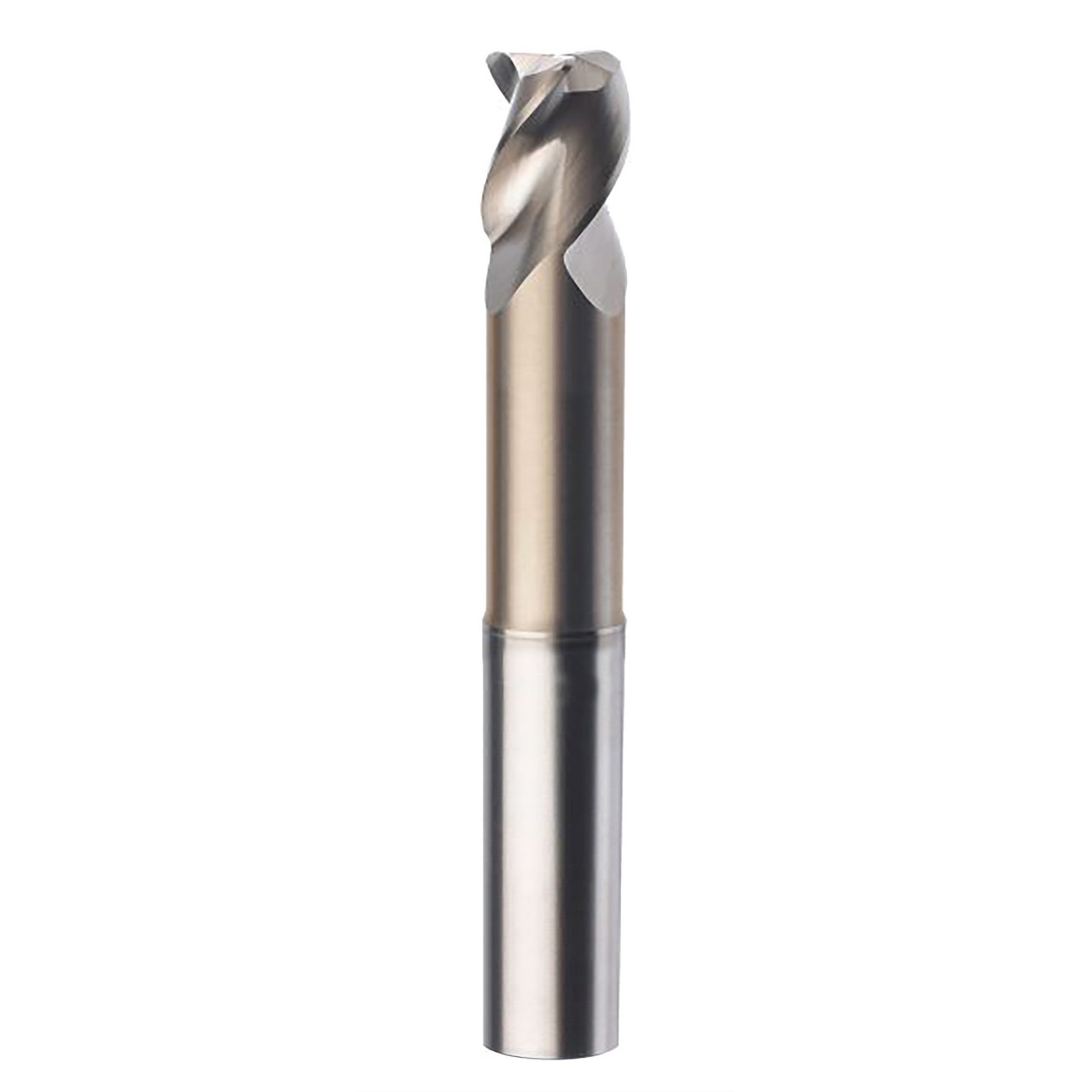

Features:
- Circular land allows for increased control at various speed and feed rates and reduces chatter
- Symmetrical end gashing for excellent balance at high speeds and aggressive plunging capability
- Open fluting for deep slotting and profiling
- Necked design with blended diameter transitions provide clearance to reach
- Enhanced corner geometry with tight tolerance corner radius
- Recommended for materials ≤ 150 BHN (≤ 7 HRC)
Product Specifications
| Cutting Diameter (Inch) | 1.000" |
| Shank Diameter (Inch) | 1.000" |
| Length of Cut (Inch) | 1.250" |
| Overall Length (Inch) | 6.000" |
| Shank Length (Inch) | 4.750" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Reach (Inch) | 3.375" |
| Corner Radius (Inch) | 0.060" |
| Helix Angle | 38 Degree |
| Coating | TiB2 |
| Number of Flutes | 3 |
