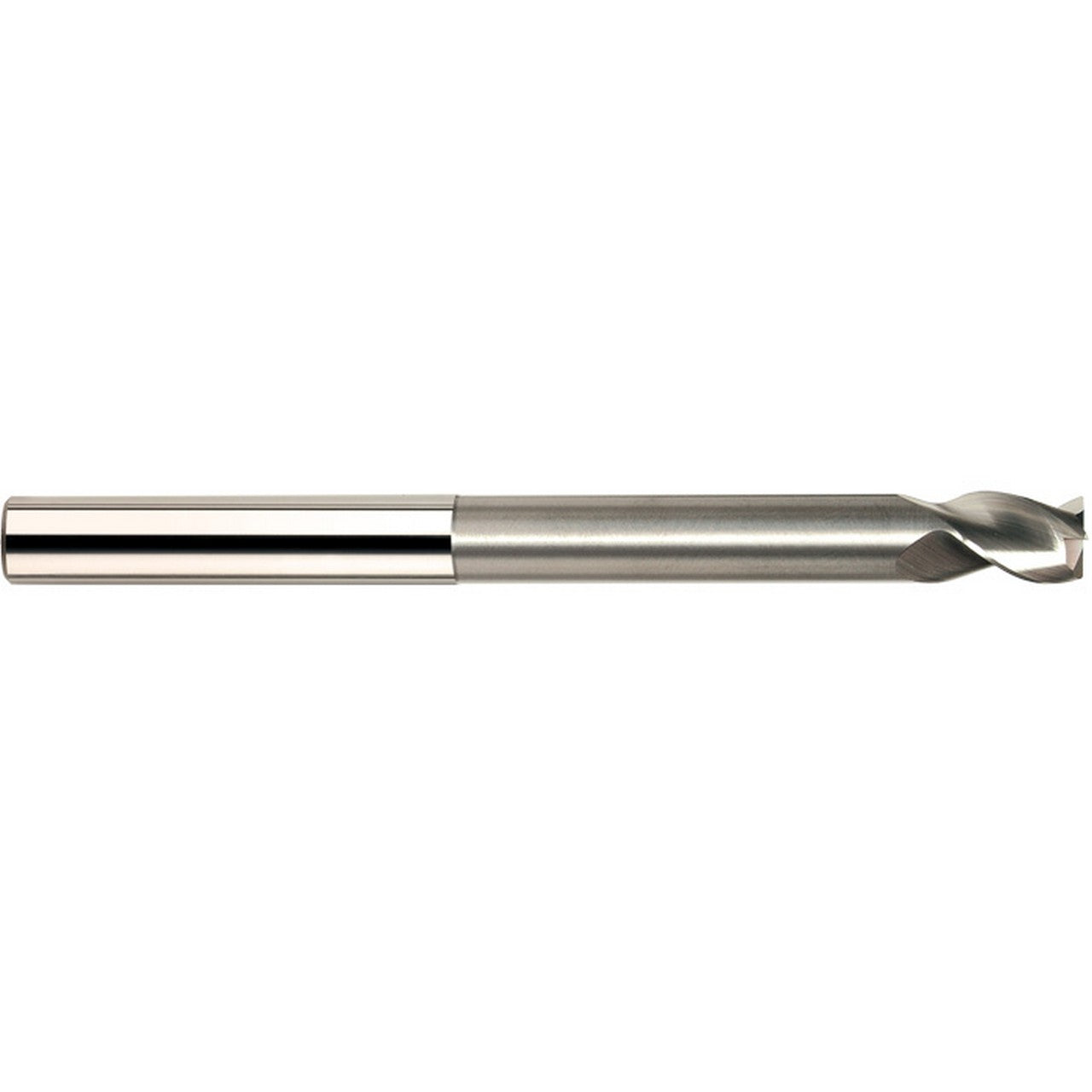

Features:
- Circular land allows for increased control at various speed and feed rates and reduces chatter
- Symmetrical end gashing for excellent balance at high speeds and aggressive plunging capability
- Open fluting for deep slotting and profiling
- Necked design with blended diameter transitions provide clearance to reach
- Enhanced corner geometry with tight tolerance corner radius
- Recommended for materials ≤ 150 BHN (≤ 7 HRC)
Product Specifications
| Cutting Diameter (Inch) | 1/8" |
| Shank Diameter (Inch) | 1/8" |
| Length of Cut (Inch) | 5/32" |
| Overall Length (Inch) | 3" |
| Shank Length (Inch) | 2.8438" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Reach (Inch) | 0.5" |
| Helix Angle | 38 Degree |
| Coating | Uncoated |
| Number of Flutes | 3 |
