Features:

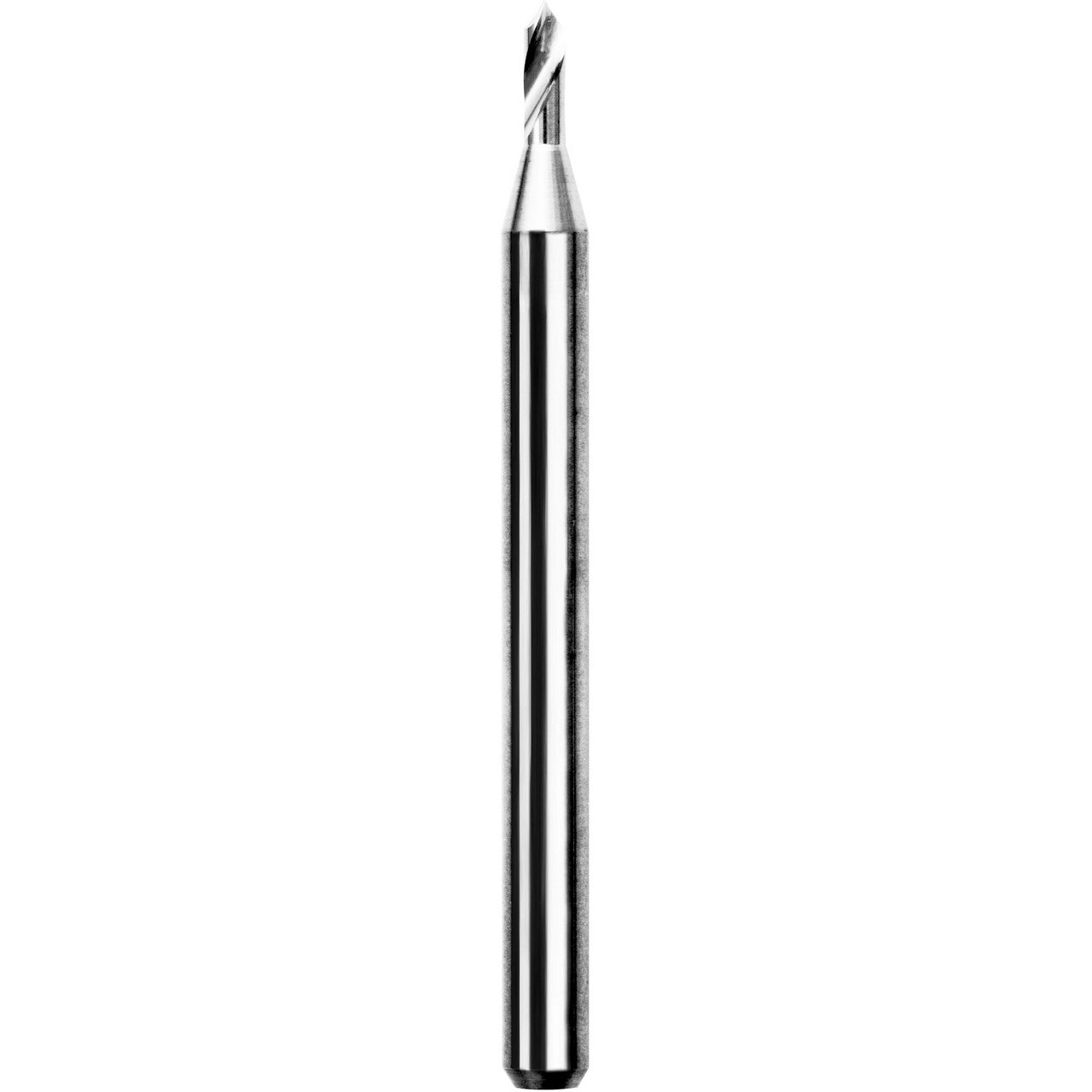

- 4-facet point design, stub length, and mirror finish provide the highest quality spot
- Ti-Namite A coating and Uncoated options for the ultimate performance and tool life in a variety of ferrous and non-ferrous workpiece materials
- Application specific sub-micron grain carbide designed specifically for micro-tool applications
- Manufactured in accordance with KSPT ISO certified quality procedures
Product Specifications
| Cutting Diameter (mm) | 0.1mm |
| Shank Diameter (mm) | 3.0mm |
| Length of Cut (mm) | 0.7mm |
| Overall Length (mm) | 38.0mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Helix Angle | 25 Degree |
| Point Angle | 90 Degree |
| Coating | Uncoated |
| Number of Flutes | 2 |
