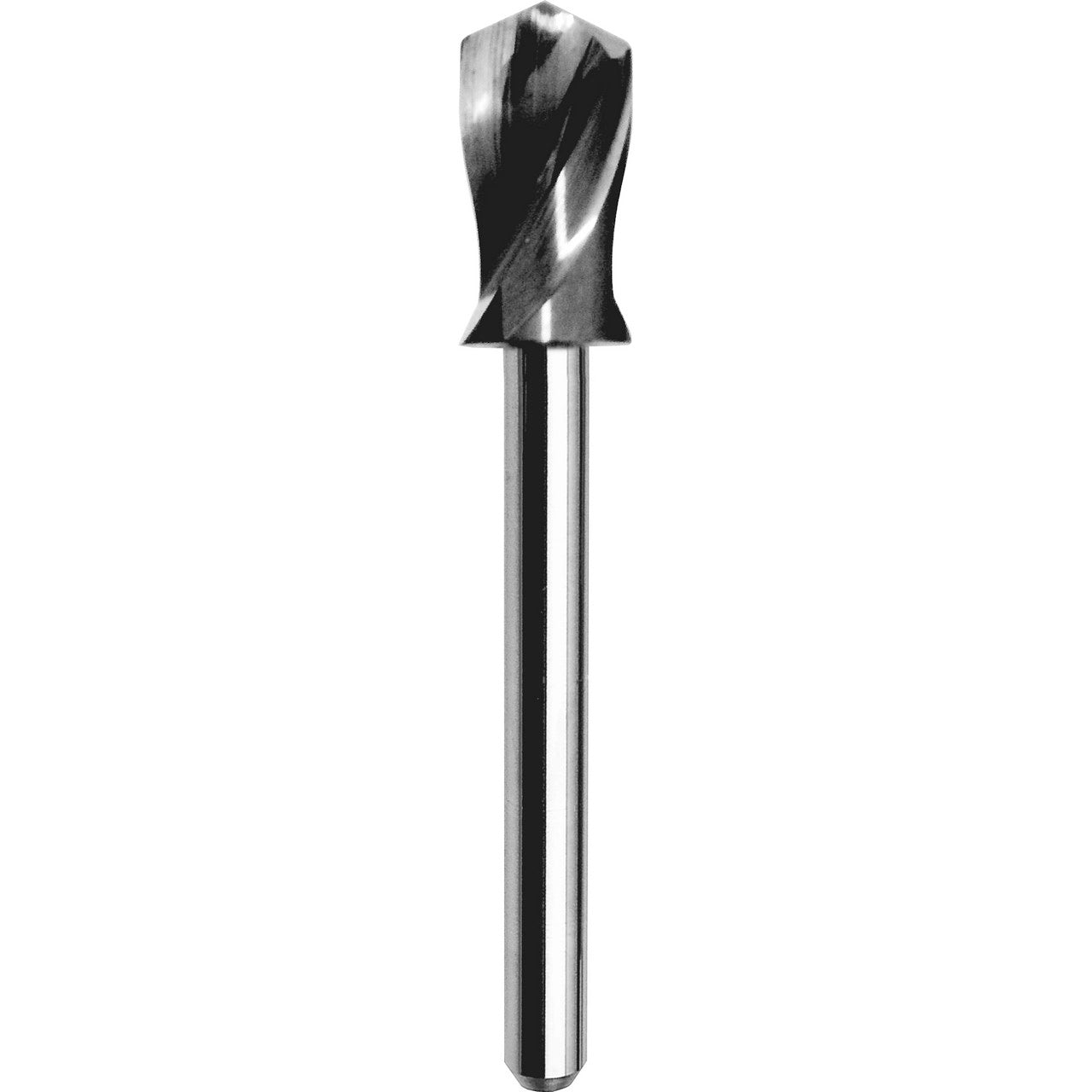

Features:
- Fractional diameters ranging from 0.1285"- 0.2610"
- Metric diameters ranging from 3,2 - 6,7mm
- All items on 1/8" common shank to suit global application demands
- 130 degree point angle
- Optimal end geometry ideal for targeted non-ferrous materials
- 4-faceted point geometry provides centering assistance upon entry
- Mirror surface finish is applied to allow for smooth chip flow
- Wide diameters offer ability to drill larger than average holes than is commonly possible in micro spindles
Product Specifications
| Wire Diameter | #20 |
| Cutting Diameter (Inch) | 0.161" |
| Shank Diameter (Inch) | 0.125" |
| Length of Cut (Inch) | 1/2" |
| Overall Length (Inch) | 1-1/2" |
| Shank Length (Inch) | 1" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Cleared Length (Inch) | 0.5" |
| Helix Angle | 30 Degree |
| Point Angle | 130 Degree |
| Coating | Uncoated |
| Number of Flutes | 2 |
