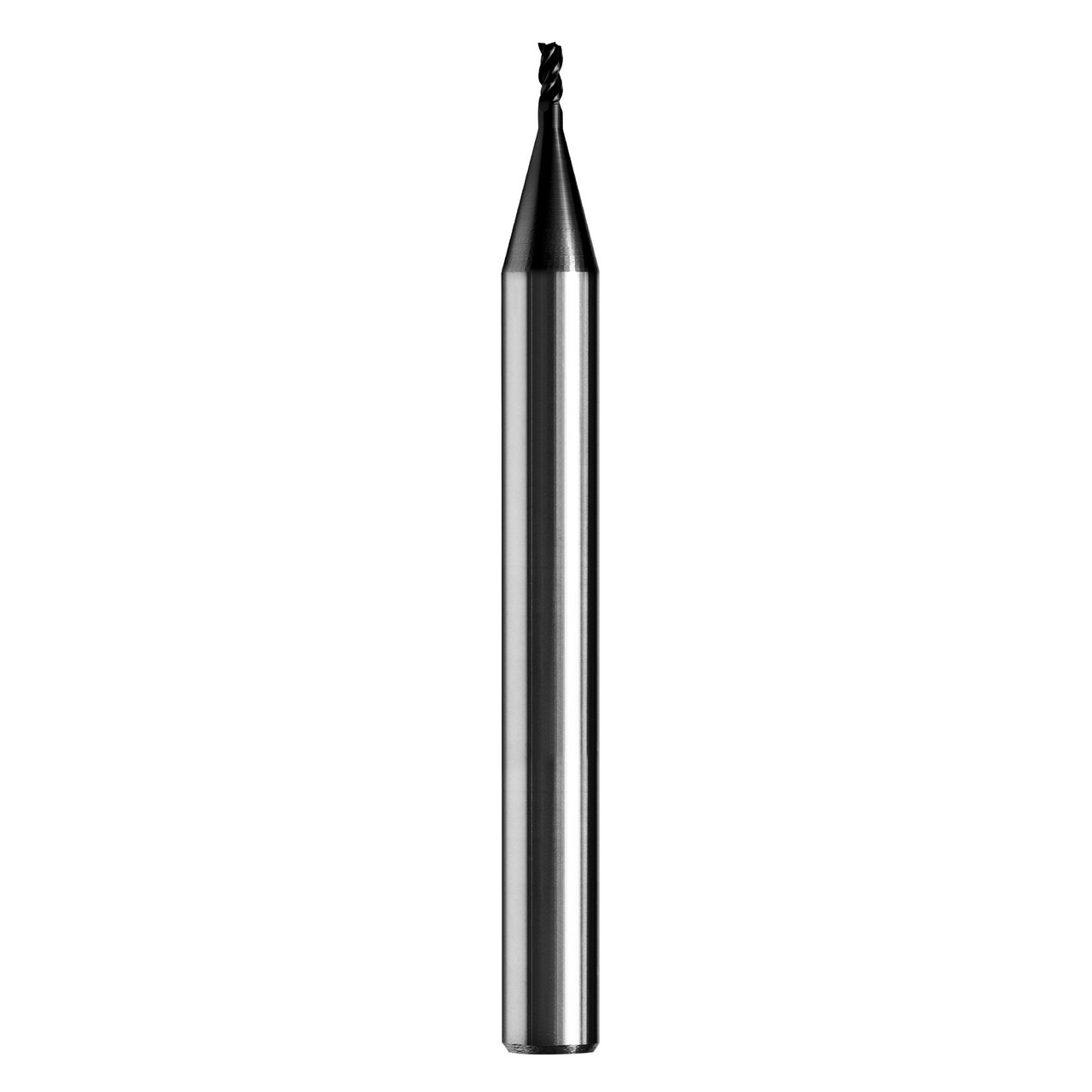

Features:
- Variable helix design improves stability, extends tool life, and improves part quality in challenging applications
- Reinforced shank maximizes rigidity, especially in applications requiring additional tool extension
- Proprietary coating allows for superior chip flow, driving industry leading productivity and value, even at low spindle speeds
- Application specific sub-micron grain carbide designed specifically for micro-tool applications
- Manufactured in accordance with KSPT ISO certified quality procedures
Product Specifications
| Cutting Diameter (mm) | 1.0mm |
| Shank Diameter (mm) | 6.0mm |
| Length of Cut (mm) | 3.0mm |
| Overall Length (mm) | 63.5mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Reach (mm) | 10mm |
| Corner Radius (mm) | 0.3 mm |
| Helix Angle | 35-45 Degree |
| Coating | AlTiN |
| Number of Flutes | 3 |
