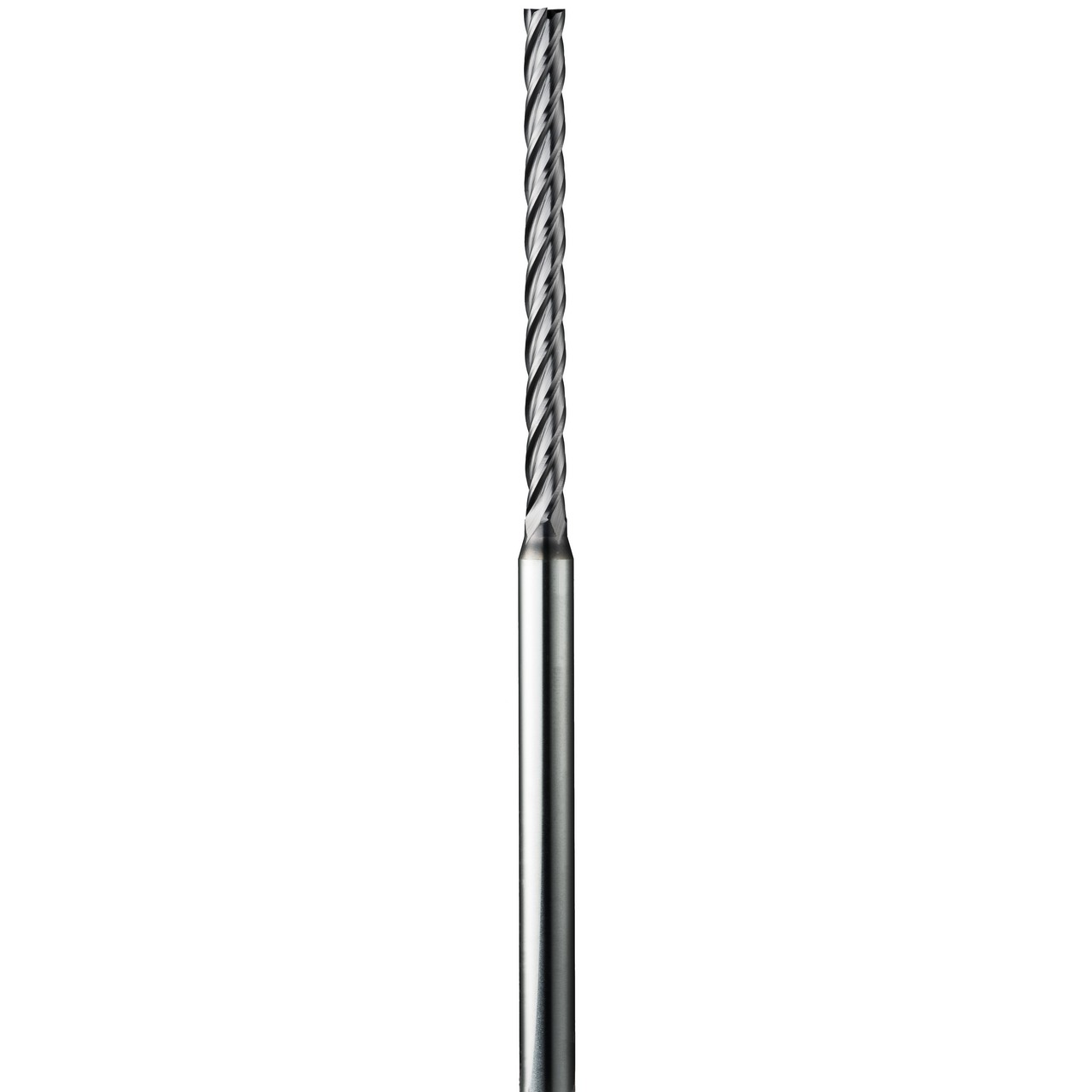

Features:
- Four flute design allows for higher feed rates and decreased deflection, improving productivity and surface finish
- Proprietary coating allows for superior chip flow, driving industry leading productivity and value, even at low spindle speeds
- High performance carbide substrate designed specifically for Micro Tool applications
- Broad portfolio, offering consistent lengths of cut, to ensure application demands are met
- Advanced geometries that extend tool life, reduce chatter, cut cycle times, and improve part quality
- All micro tools are manufactured in accordance with the KSPT ISO certified quality procedures
Product Specifications
| Cutting Diameter (Inch) | 0.025" |
| Shank Diameter (Inch) | 0.125" |
| Length of Cut (Inch) | 0.125" |
| Overall Length (Inch) | 2.500" |
| Shank Length (Inch) | 2.375" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Cleared Length (Inch) | 0.125" |
| Helix Angle | 30 Degree |
| Coating | AlTiN |
| Number of Flutes | 4 |
