Product Specifications
| Manufacturer Part Number | 89308 |
| Cutter Diameter (Decimal Inch) | 0.750" |
| Cutter Diameter (Inch) | 3/4" |
| Neck Diameter (Decimal Inch) | 0.7120" |
| Length of Cut (Decimal Inch) | 1.000" |
| Length of Cut (Inch) | 1" |
| Overall Reach (Decimal Inch) | 2.500" |
| Overall Reach (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 6.000" |
| Overall Length (Inch) | 6" |
| Corner Radius (Decimal Inch) | 0.060" |
| Number of Flutes | 6 |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (Inch) | 3/4" |
| Coating | APLUS |
| Center Cutting | Yes |
| Chip Breaker | Yes |

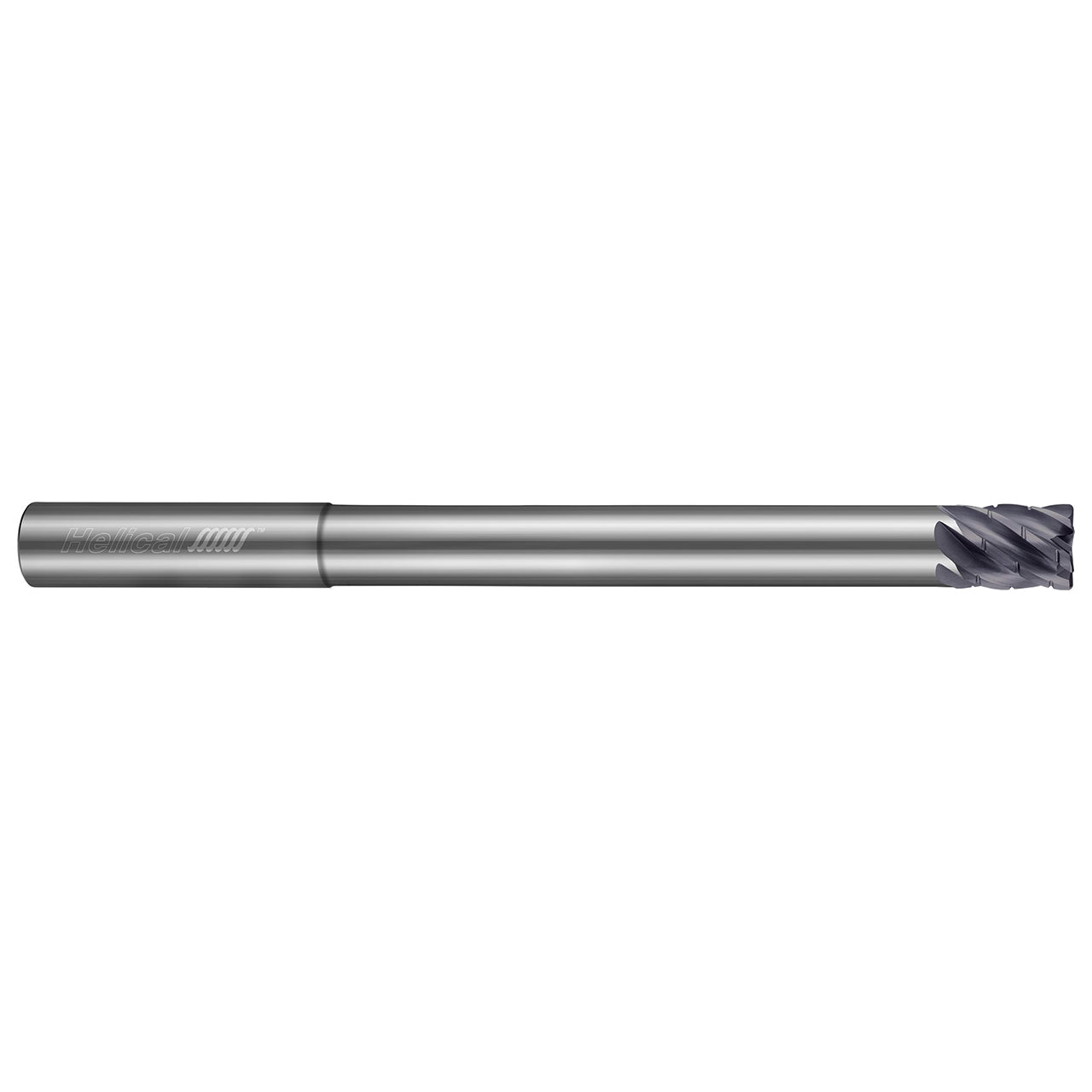

| Product Type | Corner Radius End Mill |
