Product Specifications
| Manufacturer Part Number | 89280 |
| Cutter Diameter (Decimal Inch) | 0.500" |
| Cutter Diameter (Inch) | 1/2" |
| Neck Diameter (Decimal Inch) | 0.4750" |
| Length of Cut (Decimal Inch) | 1.250" |
| Length of Cut (Inch) | 1-1/4" |
| Overall Reach (Decimal Inch) | 4.125" |
| Overall Reach (Inch) | 4-1/8" |
| Overall Length (Decimal Inch) | 6.000" |
| Overall Length (Inch) | 6" |
| Corner Radius (Decimal Inch) | 0.030" |
| Number of Flutes | 5 |
| Shank Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (Inch) | 1/2" |
| Coating | TPLUS |
| Center Cutting | Yes |
| Chip Breaker | Yes |

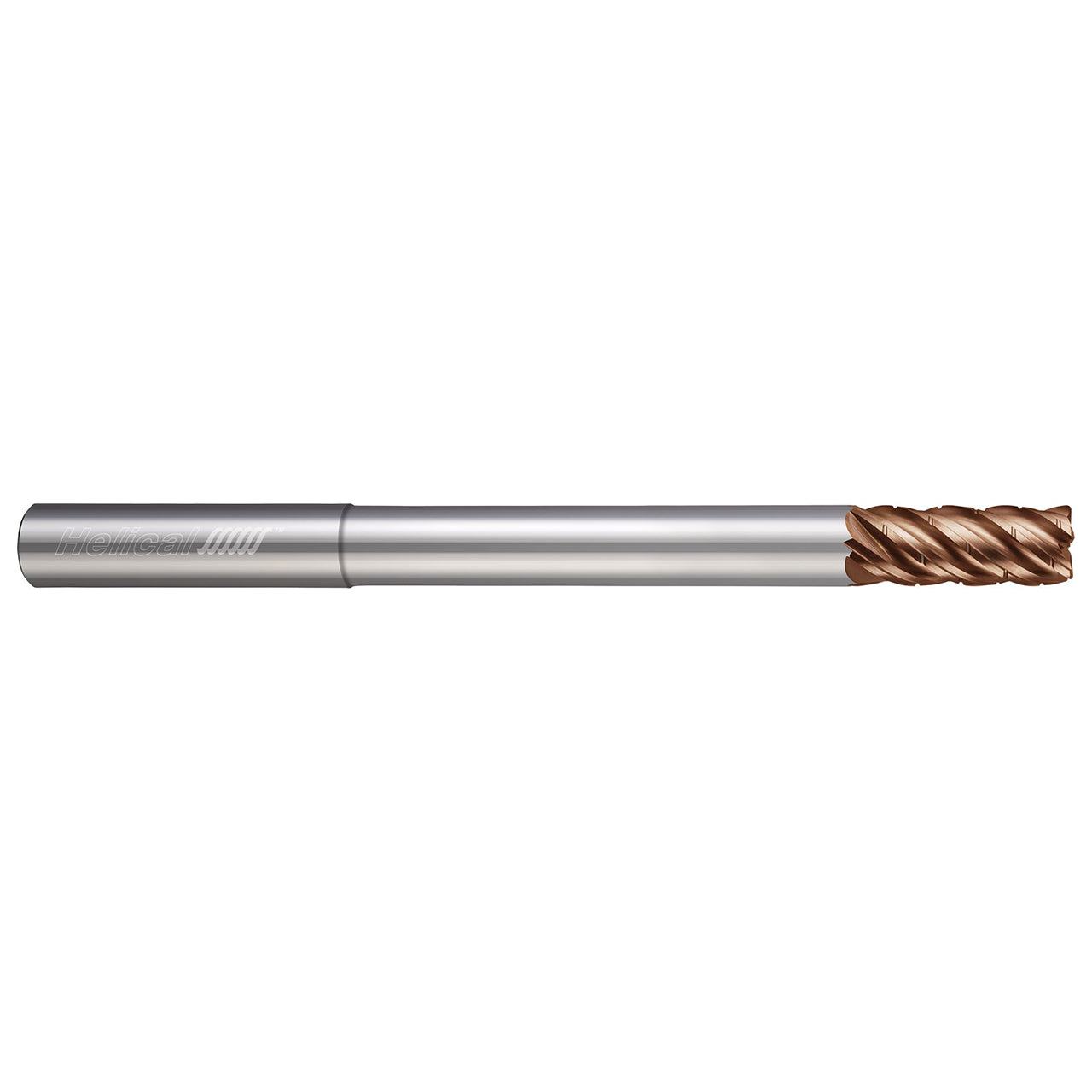

| Product Type | Corner Radius End Mill |
