Product Specifications
| Manufacturer Part Number | 89269 |
| Cutter Diameter (Decimal Inch) | 0.375" |
| Cutter Diameter (Inch) | 3/8" |
| Neck Diameter (Decimal Inch) | 0.3560" |
| Length of Cut (Decimal Inch) | 0.500" |
| Length of Cut (Inch) | 1/2" |
| Overall Reach (Decimal Inch) | 1.125" |
| Overall Reach (Inch) | 1-1/8" |
| Overall Length (Decimal Inch) | 4.000" |
| Overall Length (Inch) | 4" |
| Corner Radius (Decimal Inch) | 0.020" |
| Number of Flutes | 5 |
| Shank Diameter (Decimal Inch) | 0.375" |
| Shank Diameter (Inch) | 3/8" |
| Coating | TPLUS |
| Center Cutting | Yes |
| Chip Breaker | Yes |

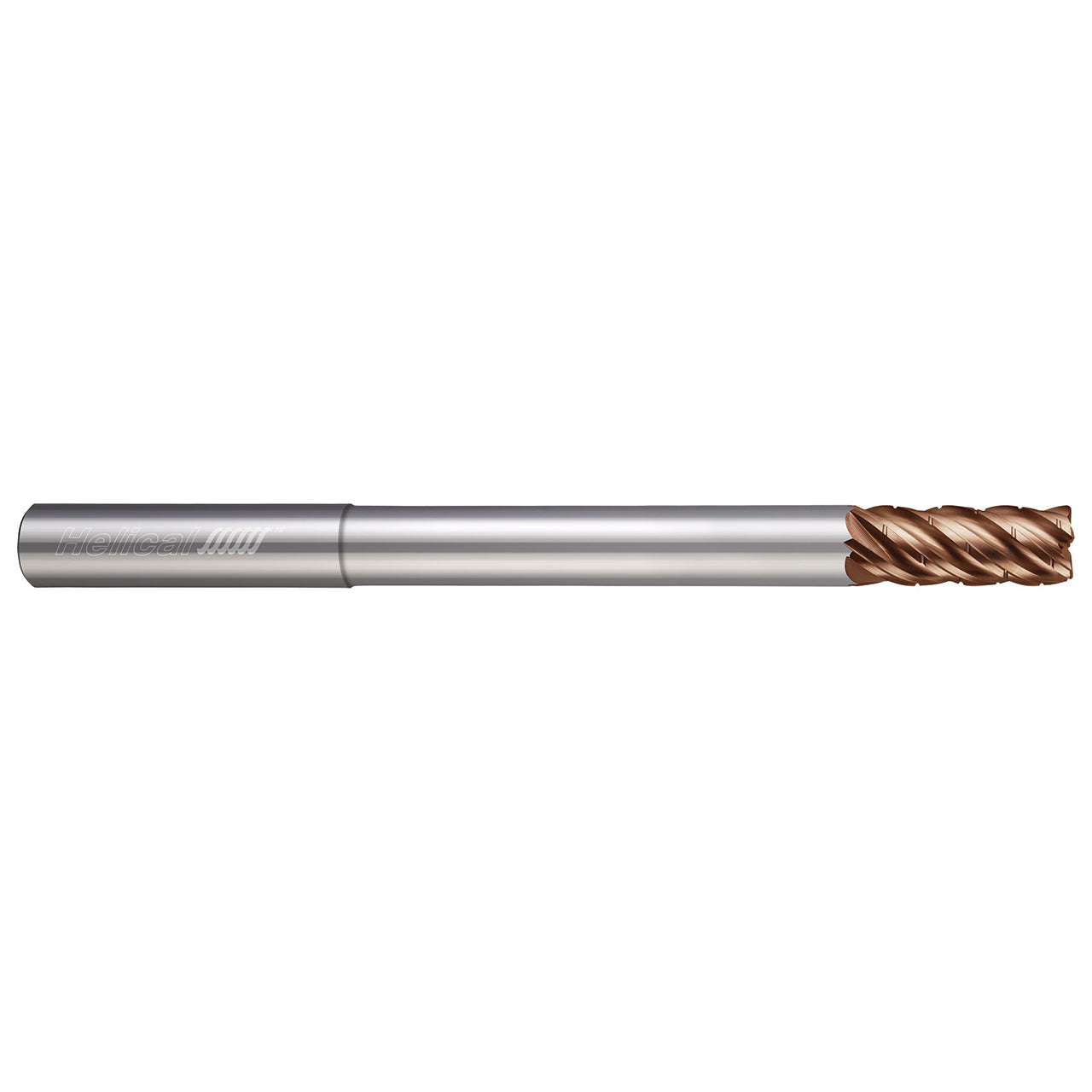

| Product Type | Corner Radius End Mill |
