Product Specifications
| Manufacturer Part Number | 89263 |
| Cutter Diameter (Decimal Inch) | 0.187" |
| Cutter Diameter (Inch) | 3/16" |
| Neck Diameter (Decimal Inch) | 0.1780" |
| Length of Cut (Decimal Inch) | 0.219" |
| Length of Cut (Inch) | 7/32" |
| Overall Reach (Decimal Inch) | 1.312" |
| Overall Reach (Inch) | 1-5/16" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (Inch) | 2-1/2" |
| Corner Radius (Decimal Inch) | 0.010" |
| Number of Flutes | 5 |
| LOC Multiple | 1.5x |
| Shank Diameter (Decimal Inch) | 0.187" |
| Shank Diameter (Inch) | 3/16" |
| Coating | TPLUS |
| Center Cutting | Yes |
| Chip Breaker | Yes |

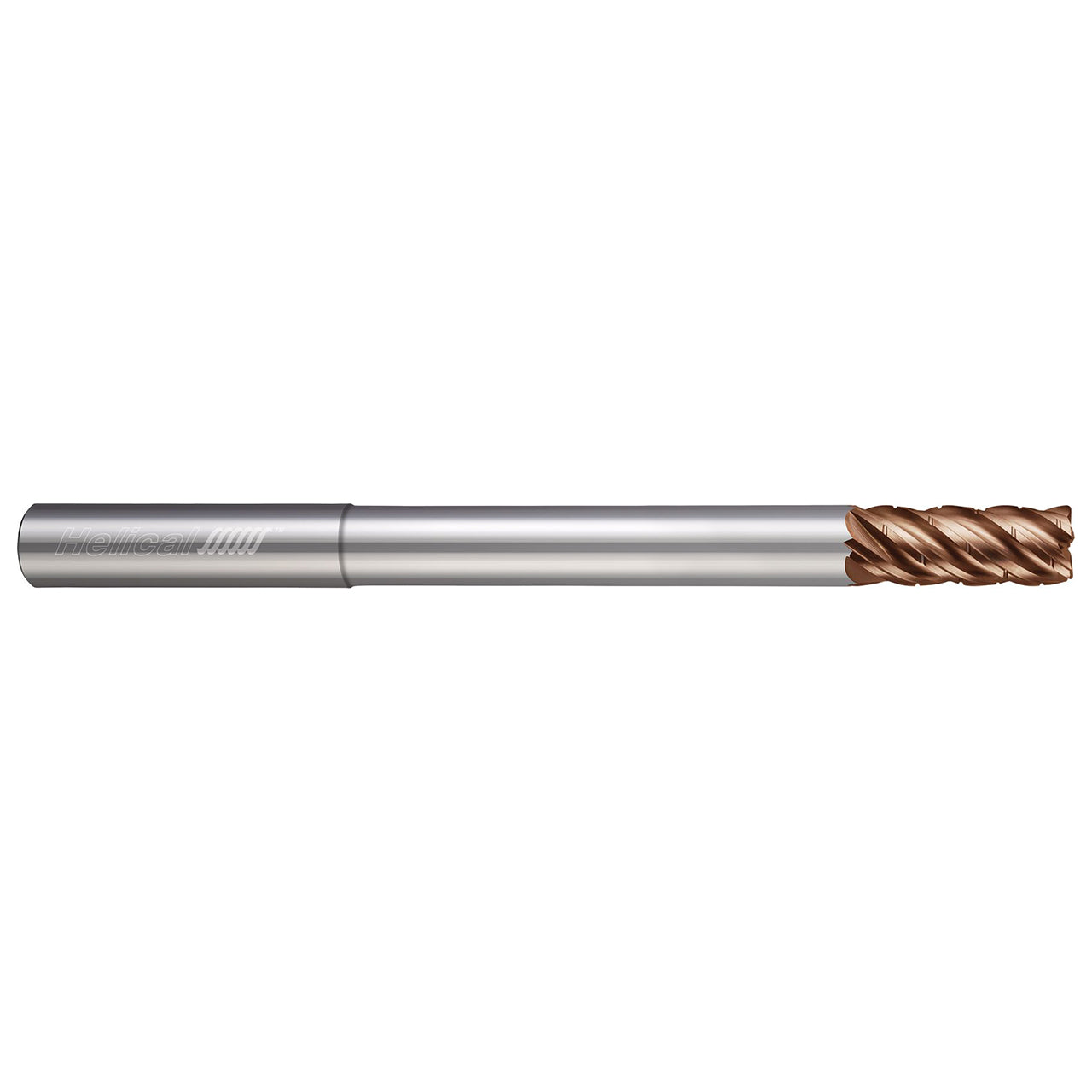

| Product Type | Corner Radius End Mill |
