Product Specifications
| Manufacturer Part Number | 89256 |
| Cutter Diameter (Decimal Inch) | 0.125" |
| Cutter Diameter (Inch) | 1/8" |
| Neck Diameter (Decimal Inch) | 0.1180" |
| Length of Cut (Decimal Inch) | 0.156" |
| Length of Cut (Inch) | 5/32" |
| Overall Reach (Decimal Inch) | 0.375" |
| Overall Reach (Inch) | 3/8" |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (Inch) | 2" |
| Neck Diameter (mm) | 3.00mm |
| Corner Radius (Decimal Inch) | 0.010" |
| Number of Flutes | 5 |
| LOC Multiple | 1.3x |
| Shank Diameter (Decimal Inch) | 0.125" |
| Shank Diameter (Inch) | 1/8" |
| Coating | TPLUS |
| Center Cutting | Yes |
| Chip Breaker | Yes |

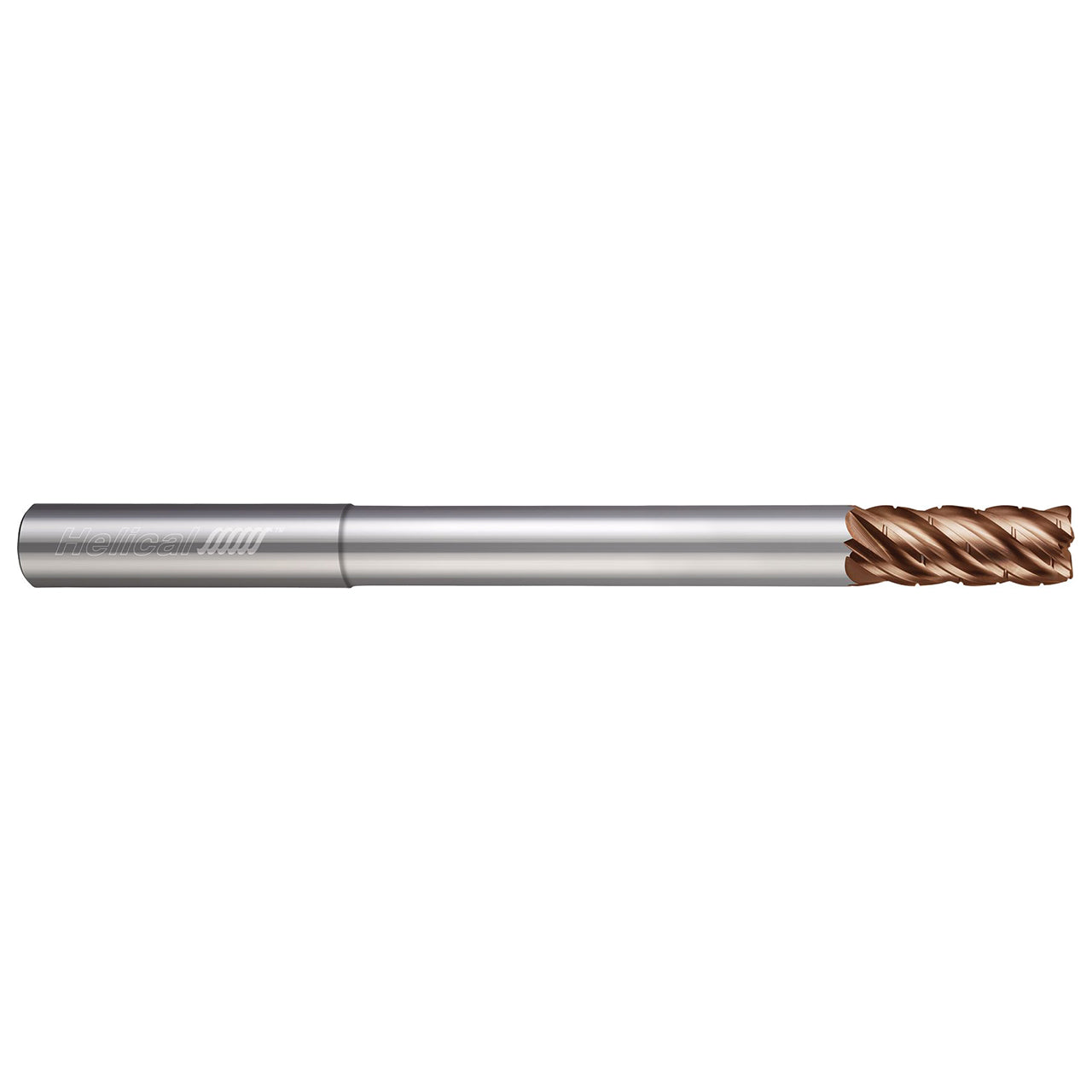

| Product Type | Corner Radius End Mill |
