Helical Solutions

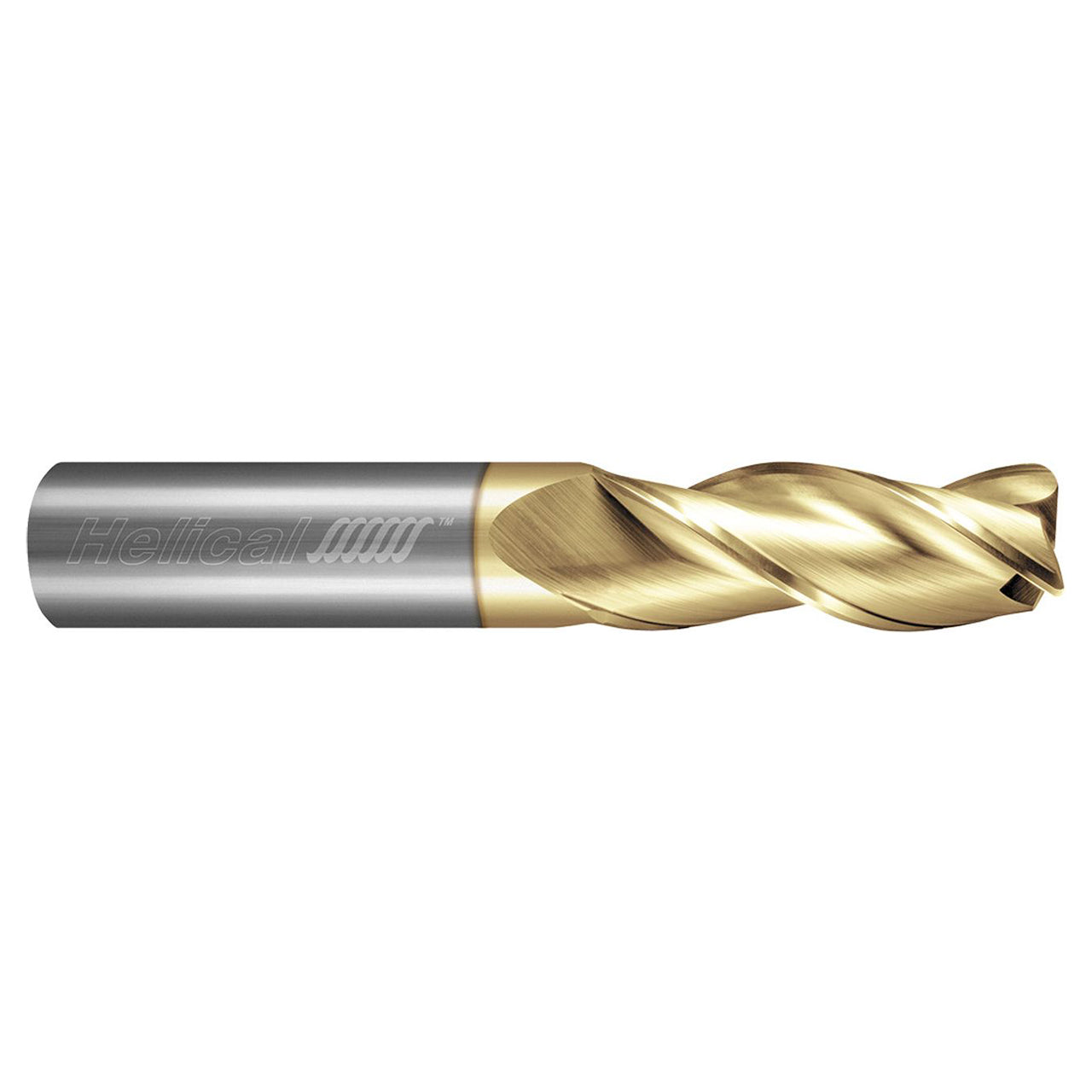

Helical Solutions 88014 | H35AL-3 0.3125" Diameter x 0.3125" Shank x 2.0000" OAL x 0.0100" Radius 3 Flute Zplus Coated Corner Radius End Mill

Helical Solutions 88014 | H35AL-3 0.3125" Diameter x 0.3125" Shank x 2.0000" OAL x 0.0100" Radius 3 Flute Zplus Coated Corner Radius End Mill

SKU: 25281010

Regular price $45.00 USD
Regular price $45.00 USD Sale price $45.00 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 104 Grams

View full details

Product Specifications
# Manufacturer Number 88014
Cutter Diameter (Inch) 5/16"
Cutter Diameter (Decimal Inch) 0.3125"
Shank Diameter (Inch) 5/16"
Shank Diameter (Decimal Inch) 0.3125"
Overall Length (Inch) 2"
Overall Length (Decimal Inch) 2.0000"
Length of Cut (Inch) 7/16"
Length of Cut (Decimal Inch) 0.4375"
Corner Radius (Decimal Inch) 0.0100"
Number of Flutes 3
Center Cutting (Yes/No) Yes
Coating Zplus
