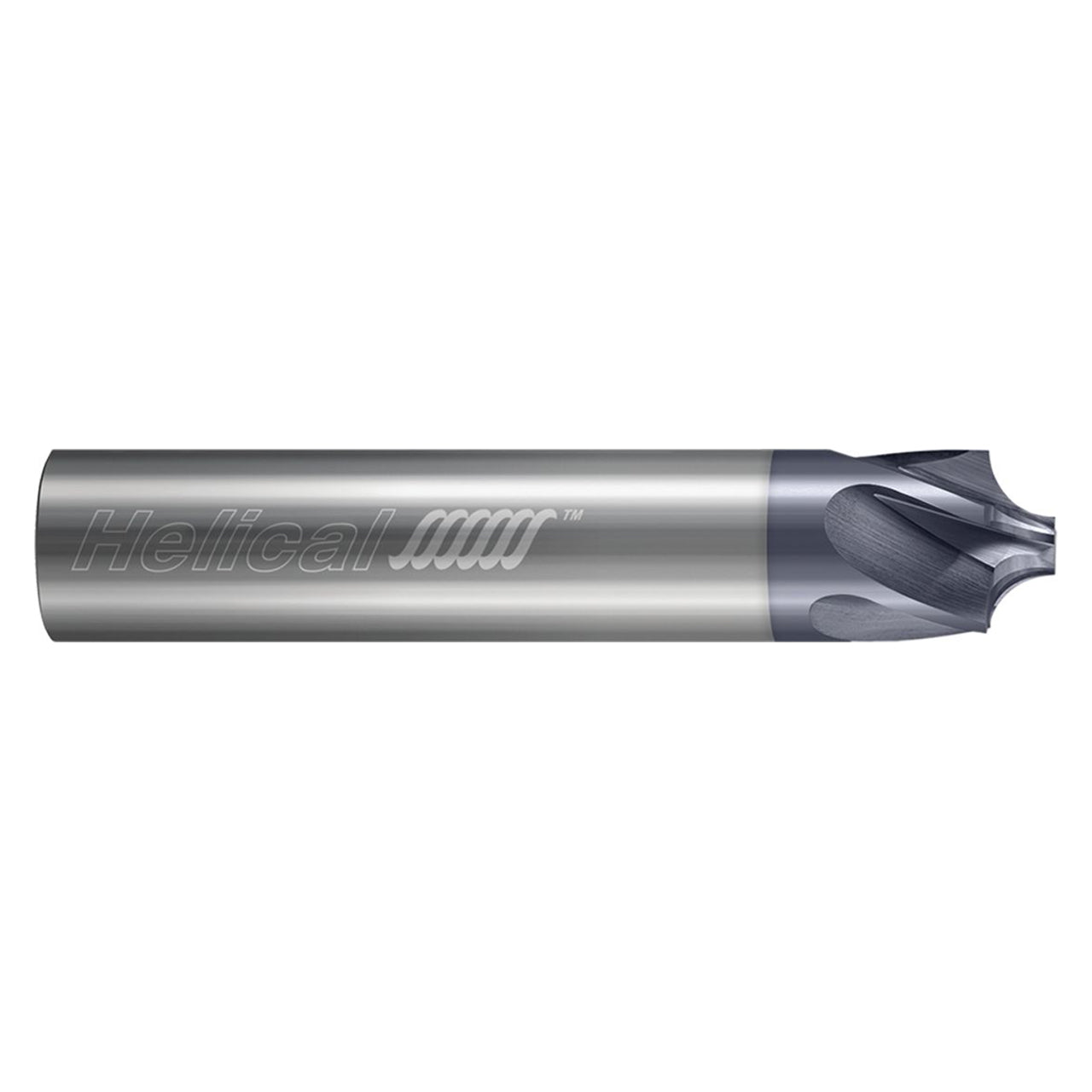

Achieve outstanding performance and superior part finish with Helical Solutions' Corner Rounding End Mills. Helically ground with a positive rake and engineered with large pilot diameters, these tools provide unmatched strength and consistent performance.
Features:- Helically ground with positive rake for high performance and superior part finish
- Large pilot diameters for maximum tool strength and consistent performance
- 2 Degree flares for smooth transitions
- Radius center is offset0.005" from OD and end of tool
- h6 shank tolerance for high precision tool holders
- Zplus coating offers higher hardness and added lubricity for maximum performance in aluminum and non-ferrous alloys
- Aplus coating for added lubricity and higher speeds and feeds in a wide variety of ferrous metals and titanium alloys
- Solid carbide
- CNC ground in the USA
Product Specifications
| Tool Number | 87670 |
| Cutter Diameter (Inch) | 0.1875" |
| Pilot Diameter (Inch) | 0.0990" |
| Length of Cut (Inch) | 0.0442" |
| Overall Length (Inch) | 2.0000" |
| Radius (Inch) | 0.0390" |
| No of Flutes | 5 |
| Pilot Flare | 2 |
| Shoulder Flare | 2 |
| Shank Diameter (Inch) | 0.1875" |
| Coating | Aplus |
